Test 4 Or Code 22 - Coolant Temperature Sensor Signal

NOTE: Coolant Temperature Sensor and Water Temperature Sensor are the same.

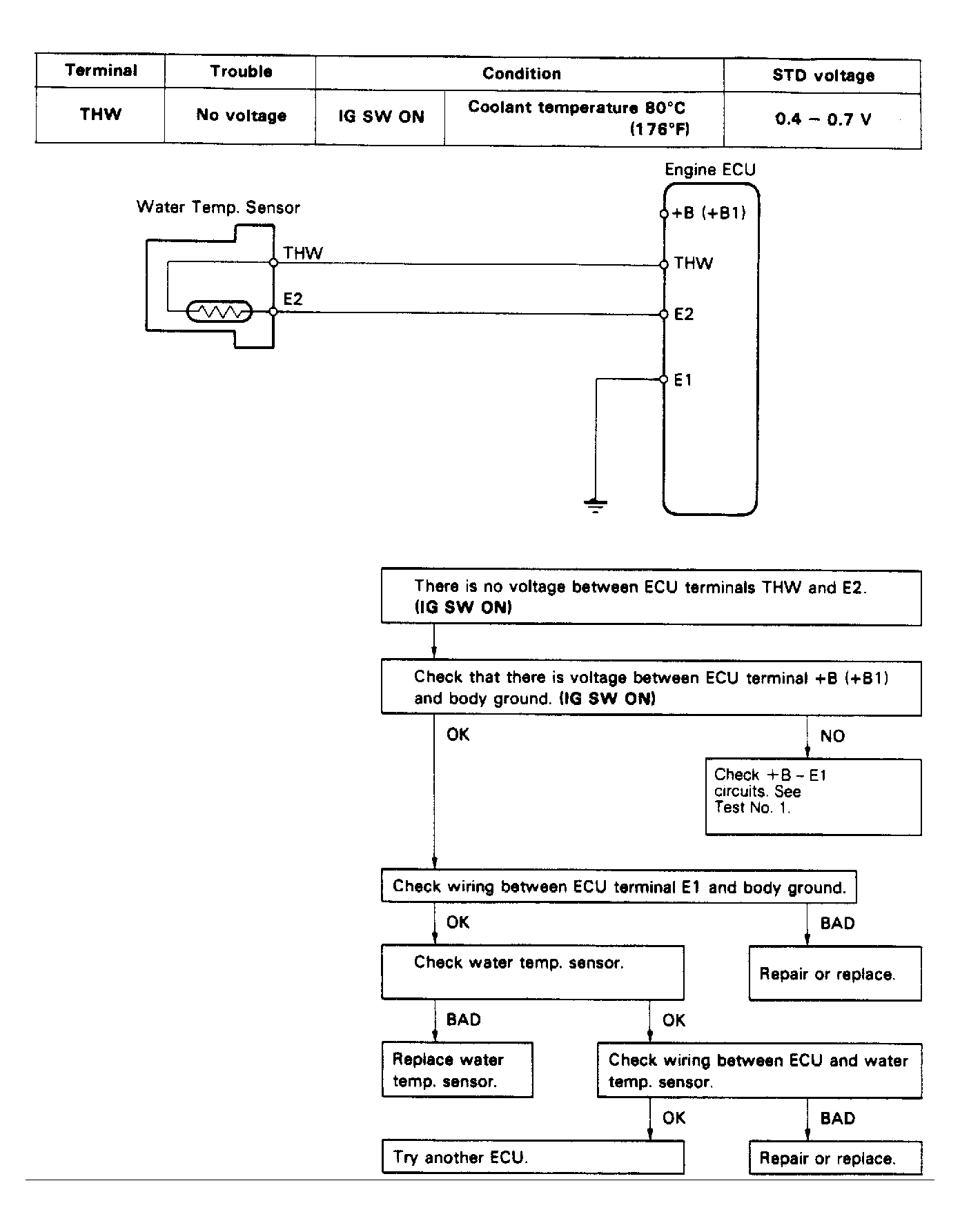

Fig 1: Test 4 or Code 22 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
