Tercel Base, 2D Hatchback, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Controls - Tests W/Codes - CARBURETED
>>
Circuit Tests
>>
Test 4 Or Code 22 - Coolant Temperature Switch Signal
Test 4 Or Code 22 - Coolant Temperature Switch Signal

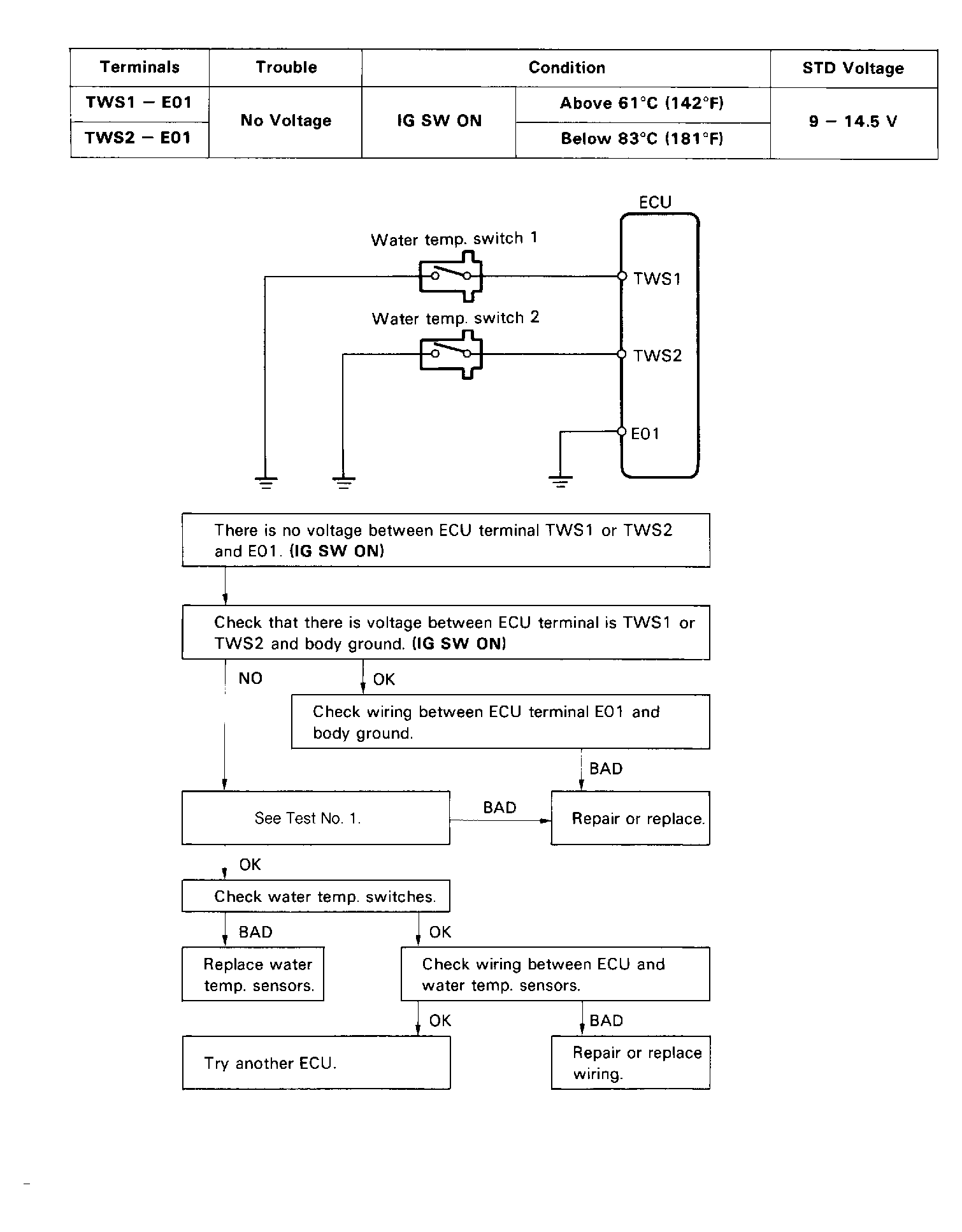

Fig 1: Test 4 or Code 22 Diagram & Flow Chart
