Test 10 - "Check Engine" Light Circuit

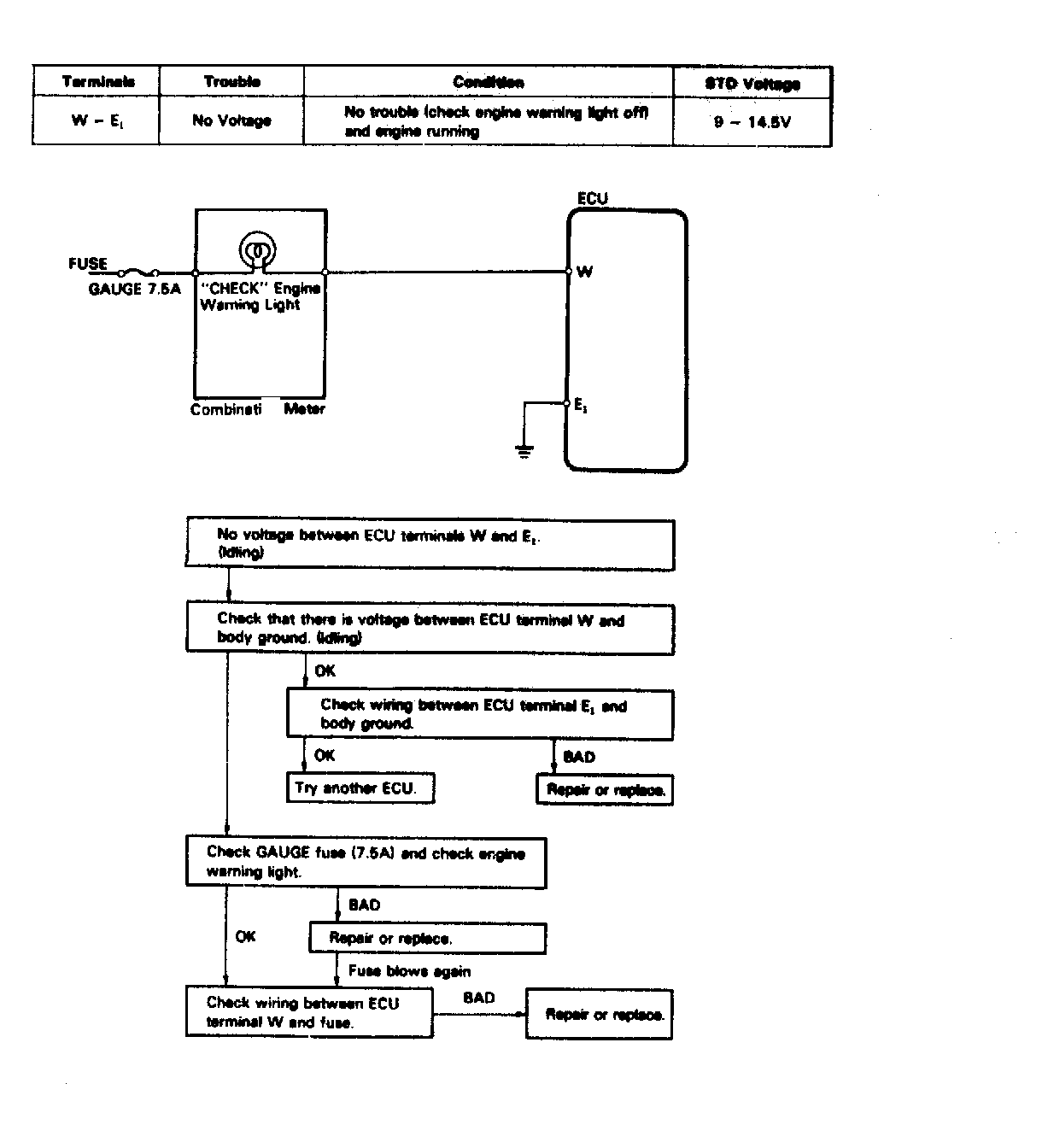

Fig 1: Test 10 Diagram & Flow Chart

G118851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
