Corolla & Pickup

Remove solenoid valve from engine and apply battery voltage to terminals. See Fig 1 or Fig 2. Solenoid should click when battery is connected and disconnected. Check "O" ring for damage and replace if necessary. Reinstall valve.

Fig 1: Testing Fuel-Cut Solenoid Valve (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Testing Fuel-Cut Solenoid Valve (Pickup)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

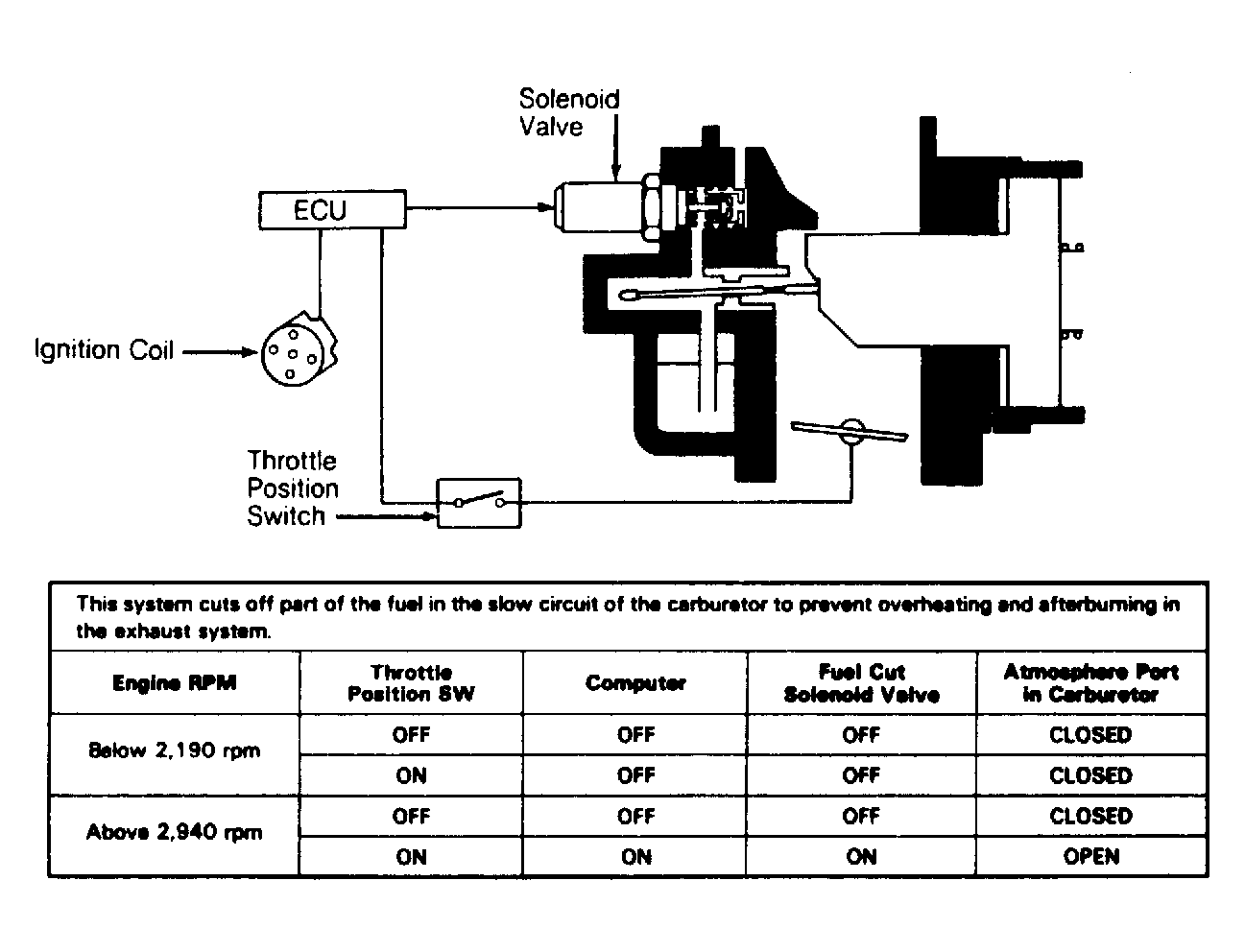

Fig 3: Deceleration Fuel-Cut System Comp & Parameters (Corolla)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

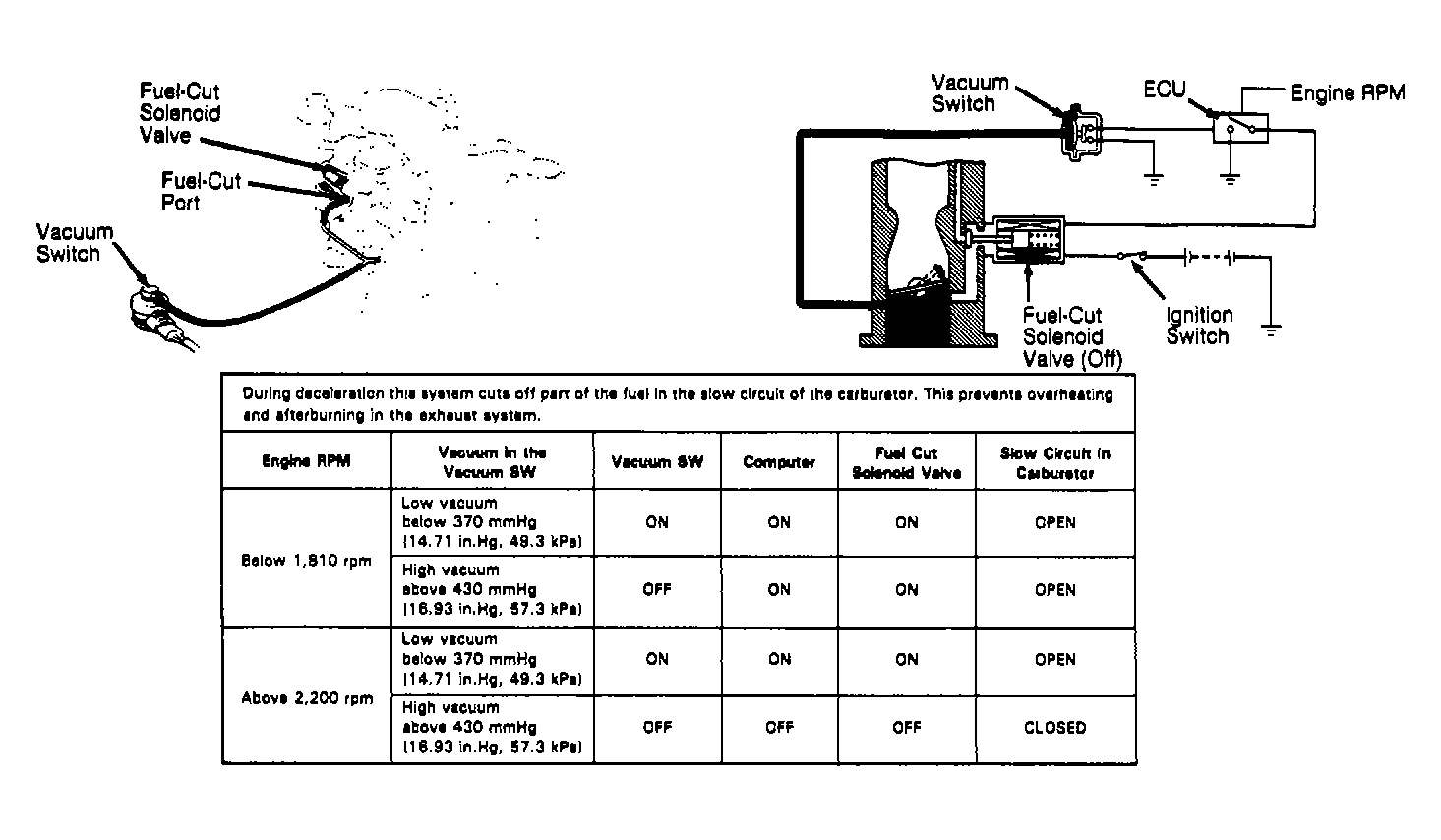

Fig 4: Decel Fuel-Cut System Comp & Parameters (Pickup)

Fig 5: Deceleration Fuel-Cut System Comp & Parameters (Tercel)
