Back Door Key Unlock Switch

  1. Check that there is continuity between terminal Nos. 1 and 2 when the switch is turned to the right. See Fig 1.
  2. Check that there is no continuity between terminal Nos. 1 and 2 when the switch is turned to the left or neutral position.
  3. If continuity is not as specified, replace the switch.

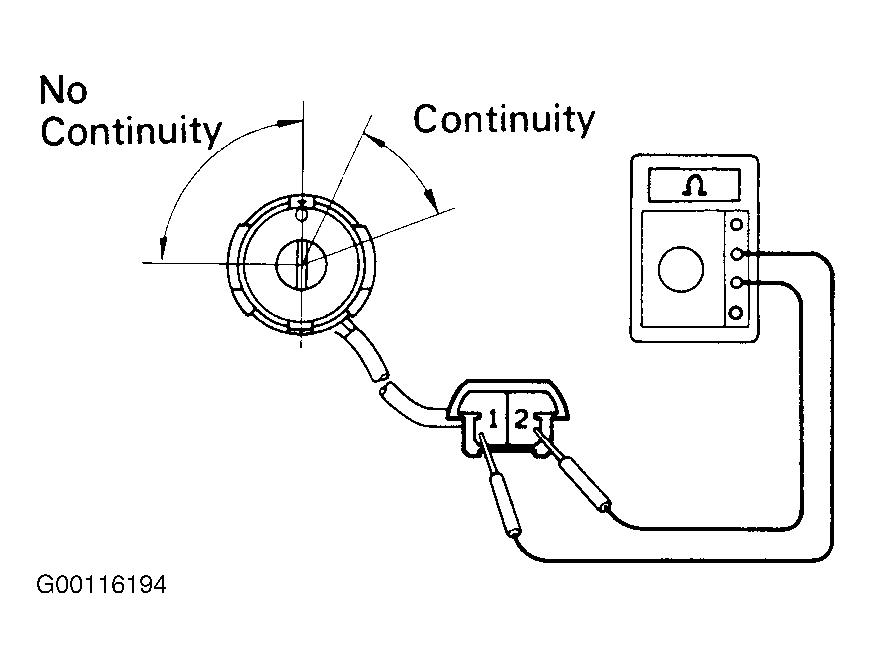

Fig 1: Testing Back Door Key Unlock Switch Operation
G00116194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
