Test I: Inspection Of Neutral Start Switch

For test procedure, refer to illustration. See Fig 1.

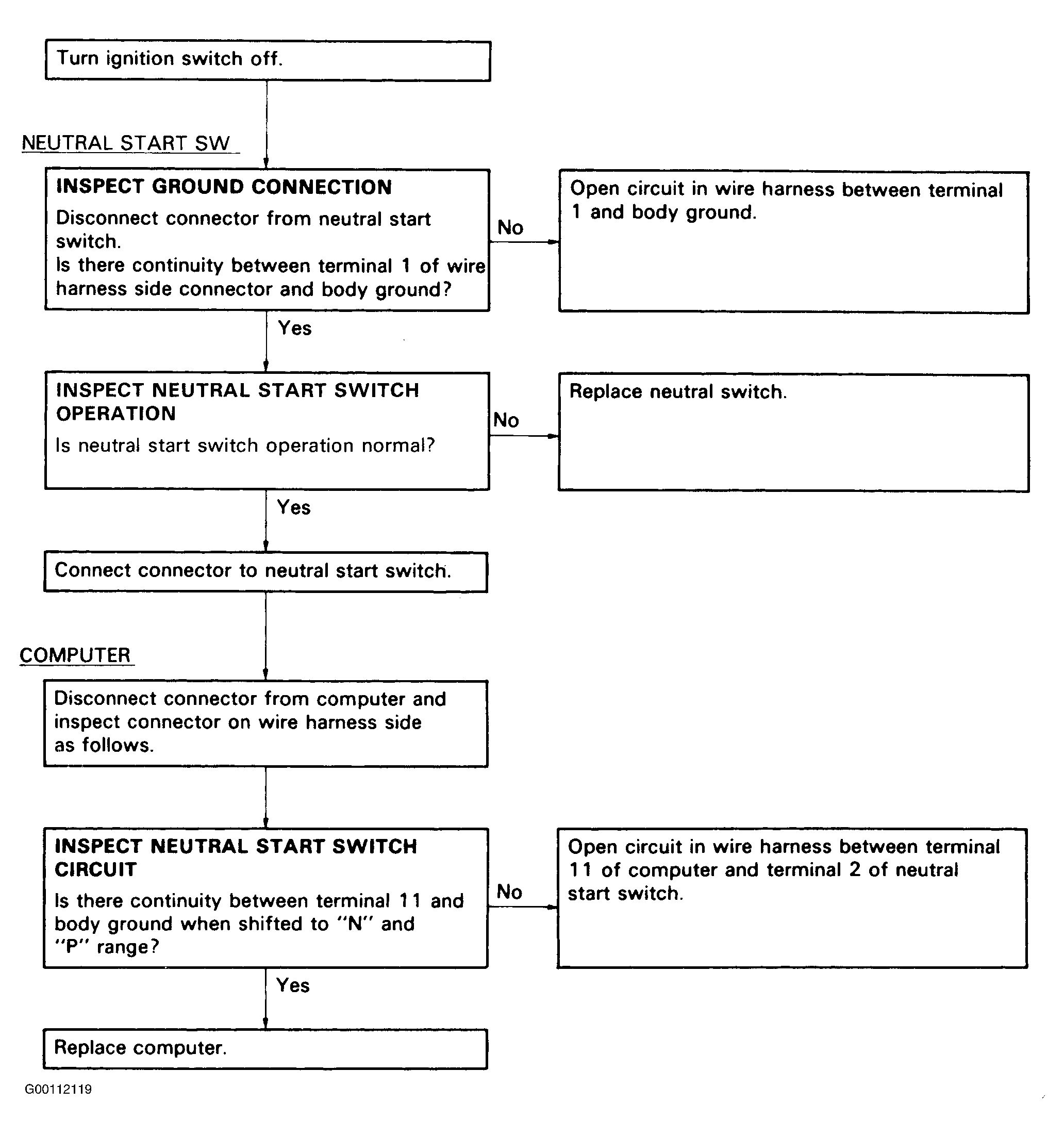

Fig 1: Test I: Inspection Of Neutral Start Switch

G00112119

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
