Test F: Inspection Of Stop Light Switch
Test F: Inspection Of Stop Light Switch
For test procedure, refer to illustration. See
Fig 1
.

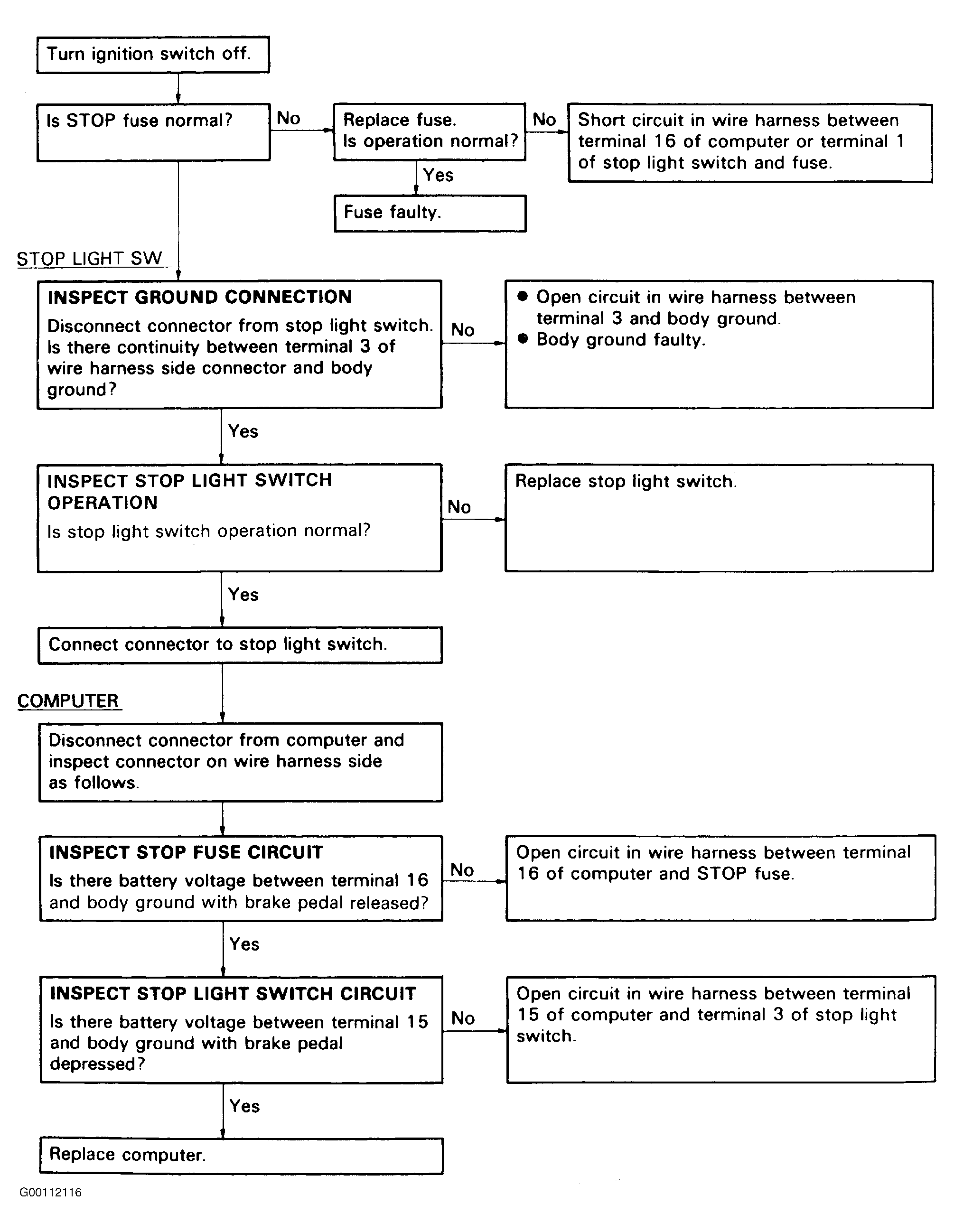

Fig 1: Test F: Inspection Of Stop Light Switch
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
