Test E: Inspection Of Speed Sensor

For test procedure, refer to illustration. See Fig 1.

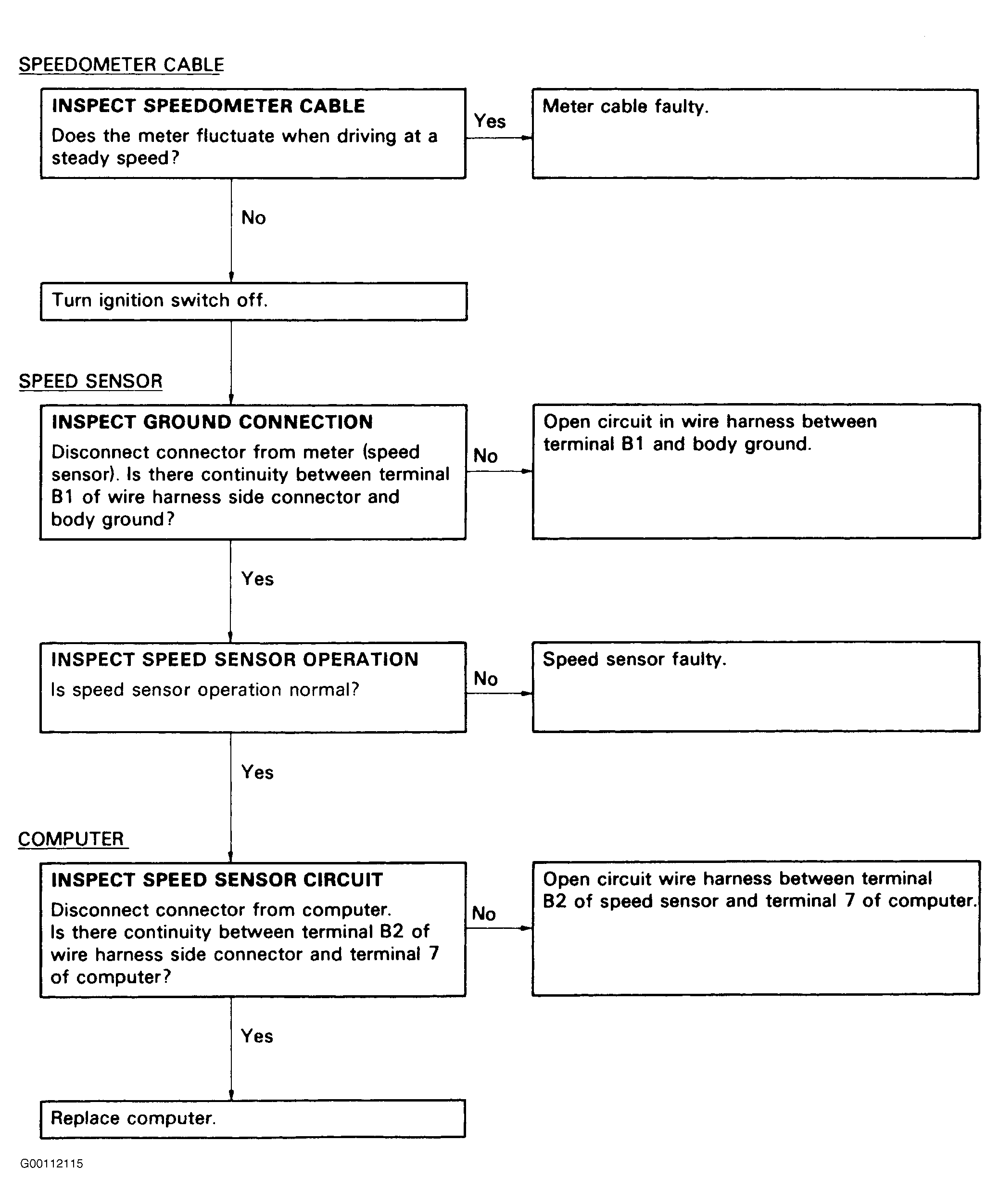

Fig 1: Test E: Inspection Of Speed Sensor

G00112115

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
