Test B: Inspection Of Set/Coast Switch

For test procedure, refer to illustration. See Fig 1.

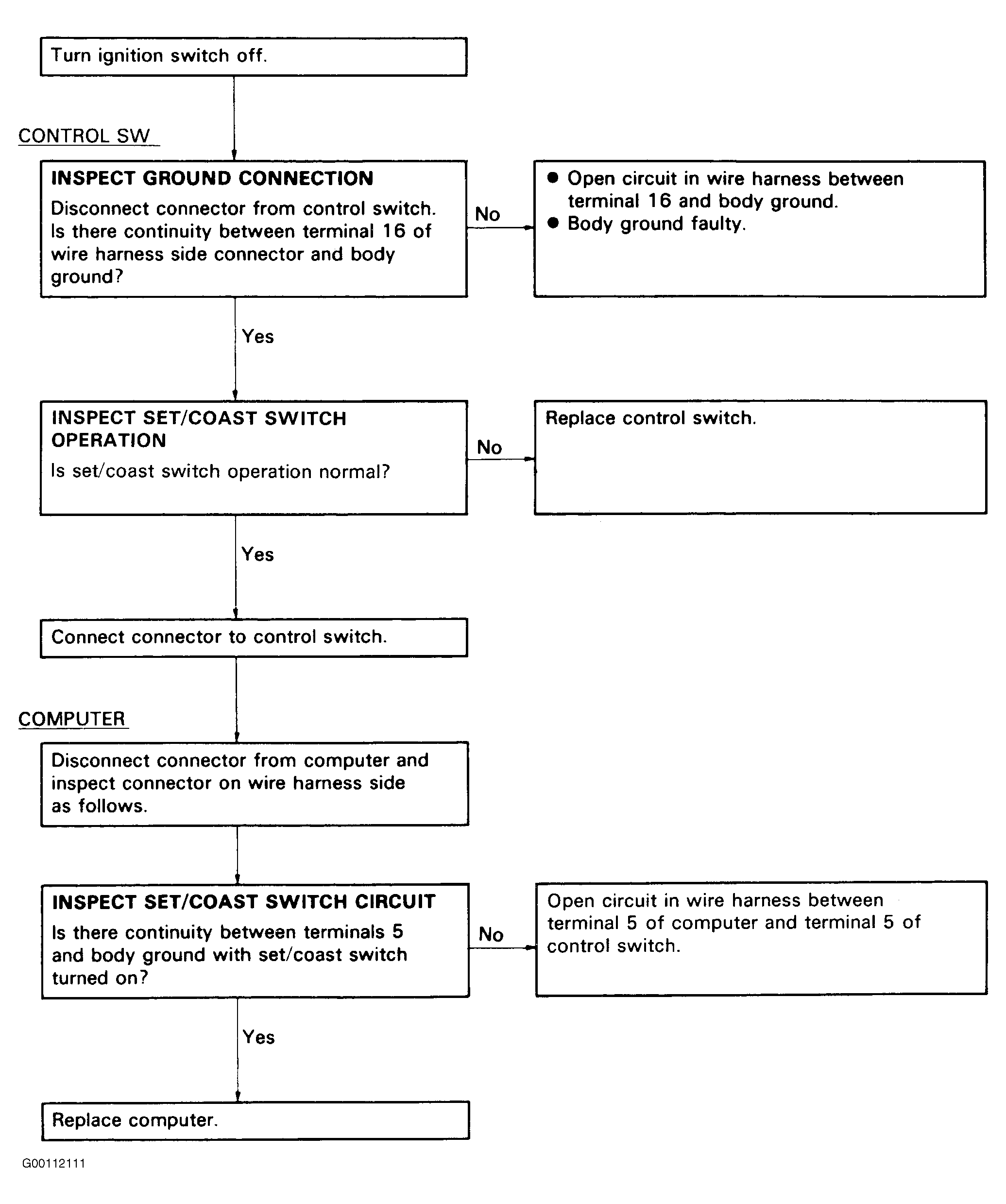

Fig 1: Test B: Inspection Of Set/Coast Switch
G00112111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
