Connector Identification

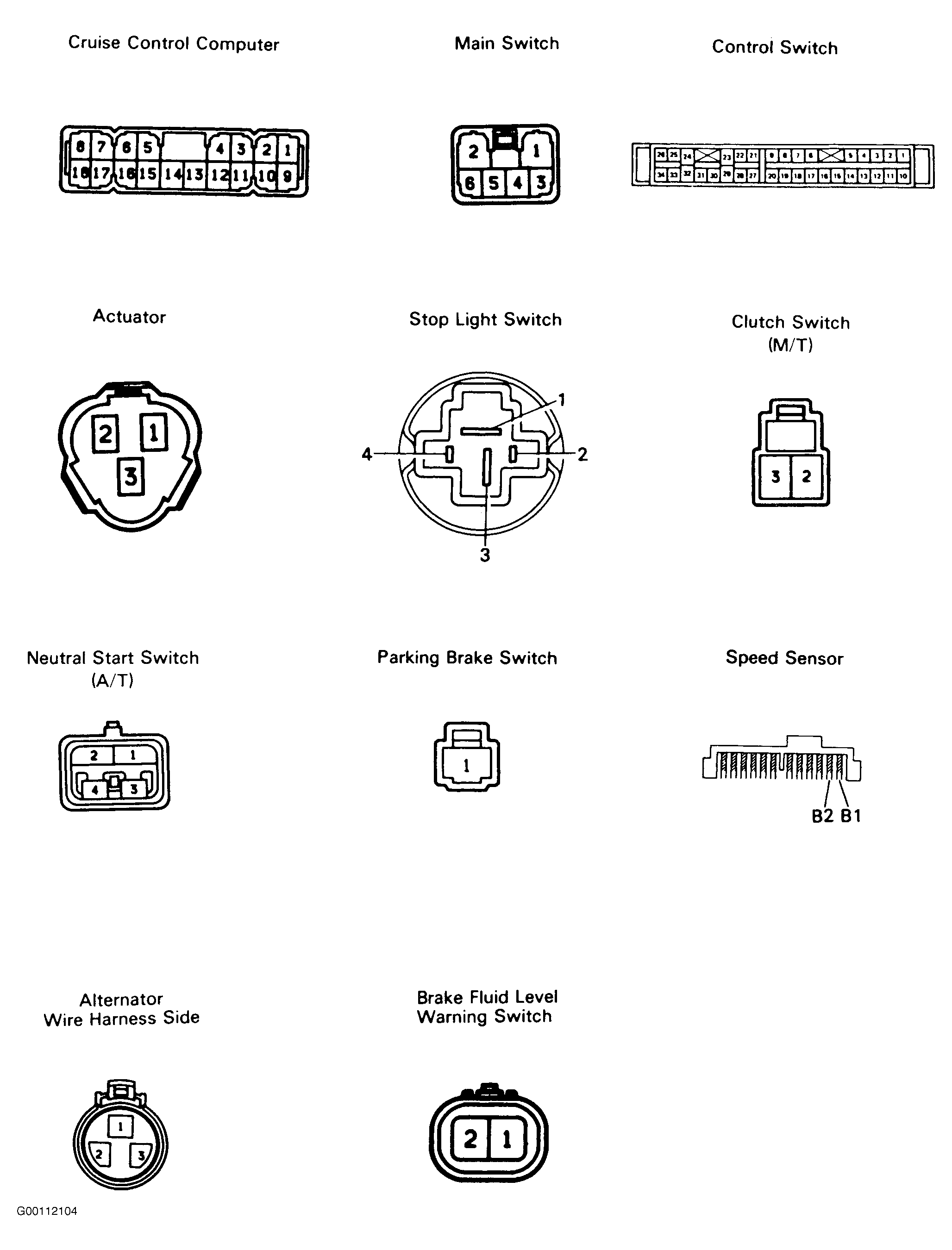

Fig 1: Identifying Cruise Control System Connectors & Terminals

G00112104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
