Test 5 Or Code 24 - Intake Air Temperature Sensor Signal

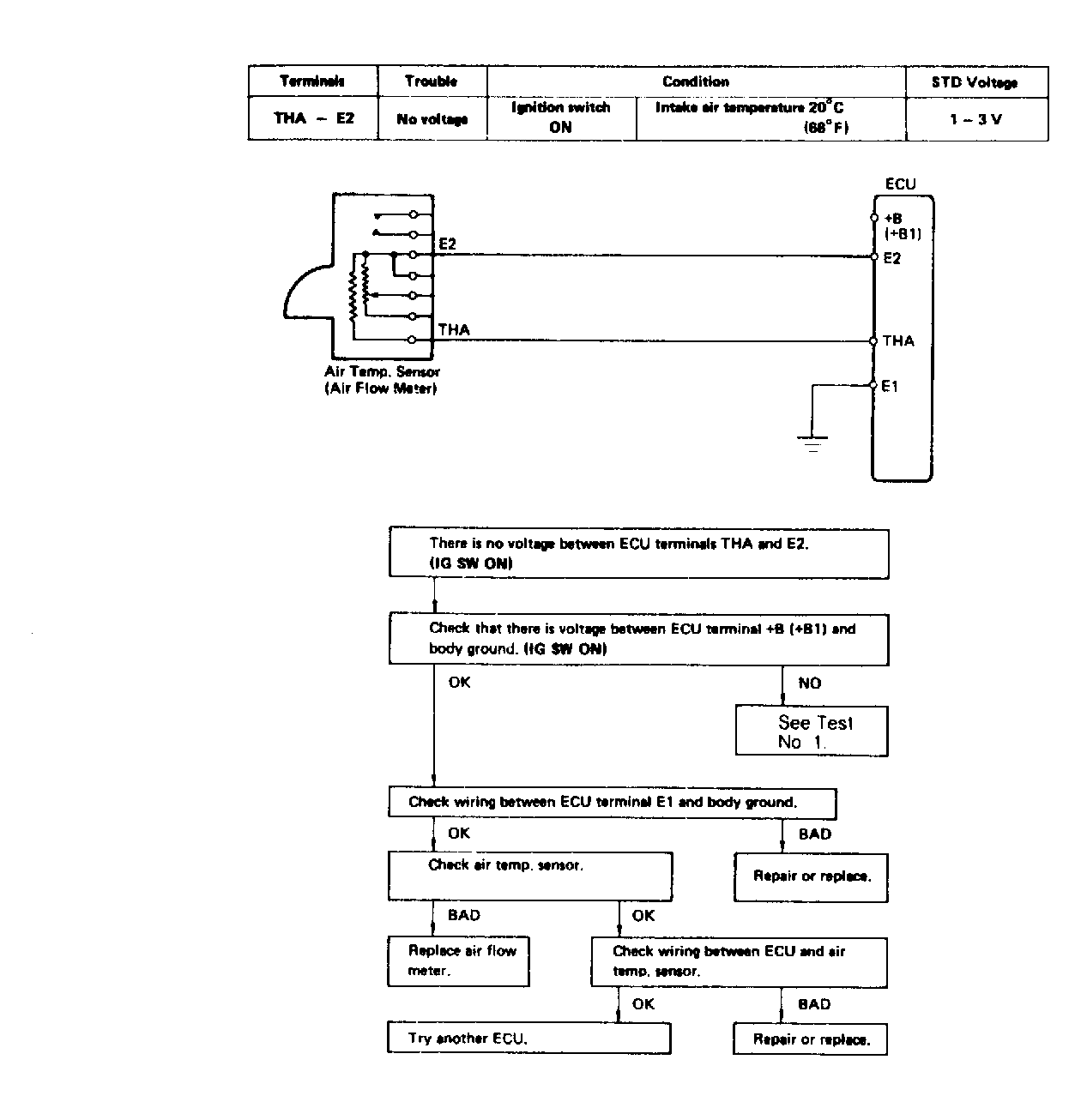

Fig 1: Test 5 or Code 24 Diagram & Flow Chart (Non-Turbo)
G118823Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

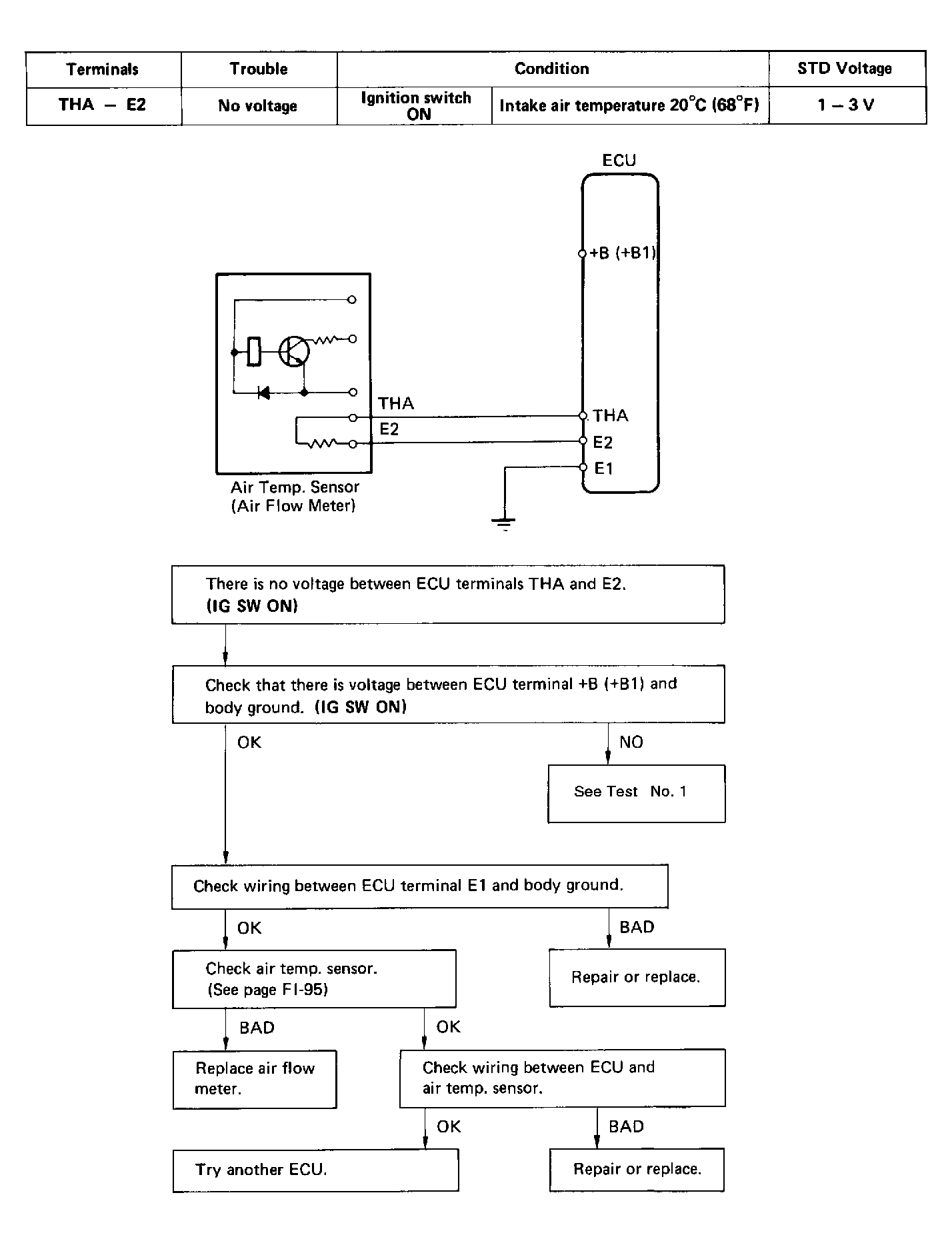

Fig 2: Test 5 or Code 24 Diagram & Flow Chart (Turbo)
G118824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
