Test 11 - Idle Speed Control Circuit

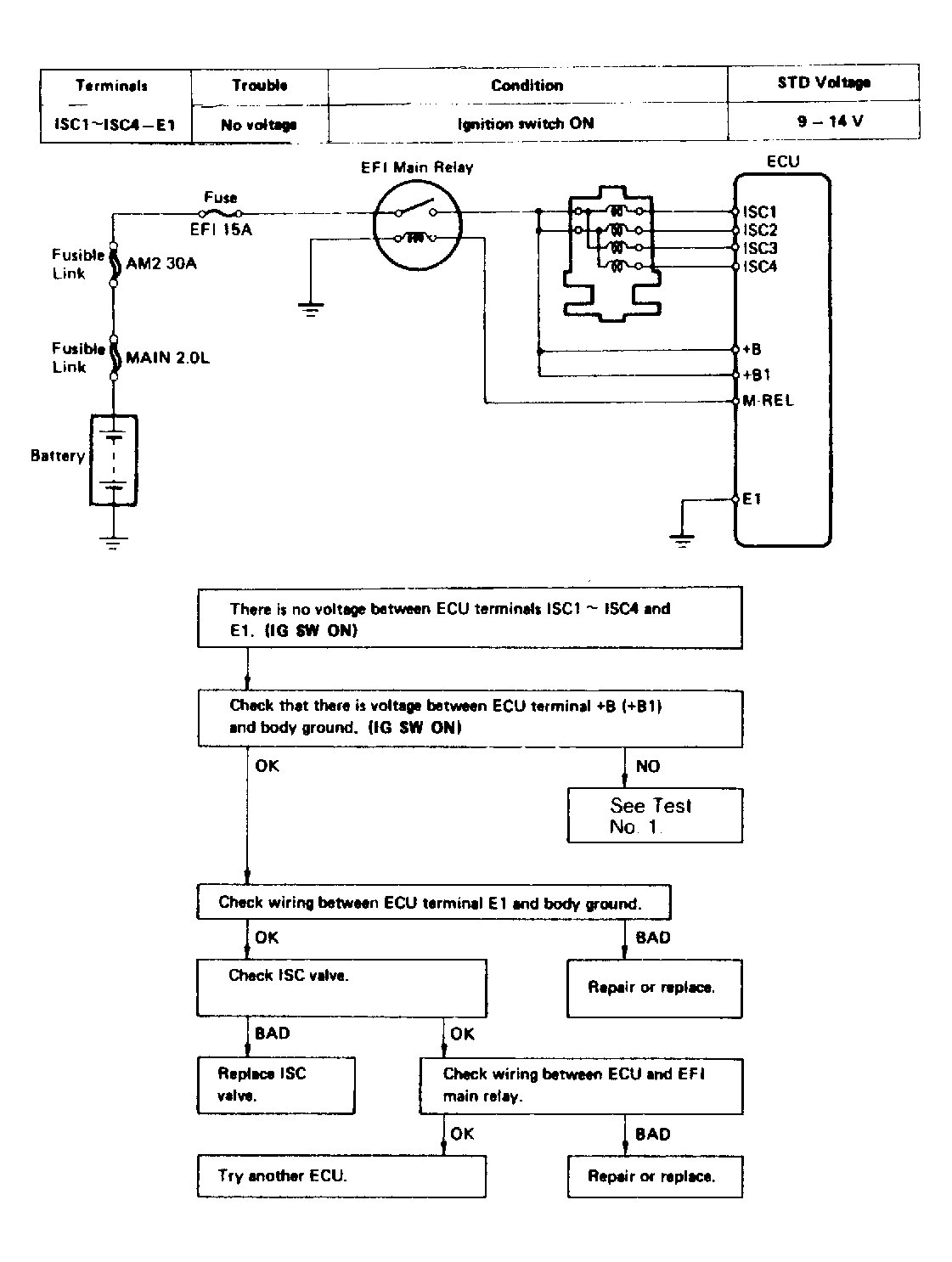

Fig 1: Test 11 Diagram & Flow Chart

G118837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
