Test 4 Or Code 22 - Coolant Temperature Sensor Signal

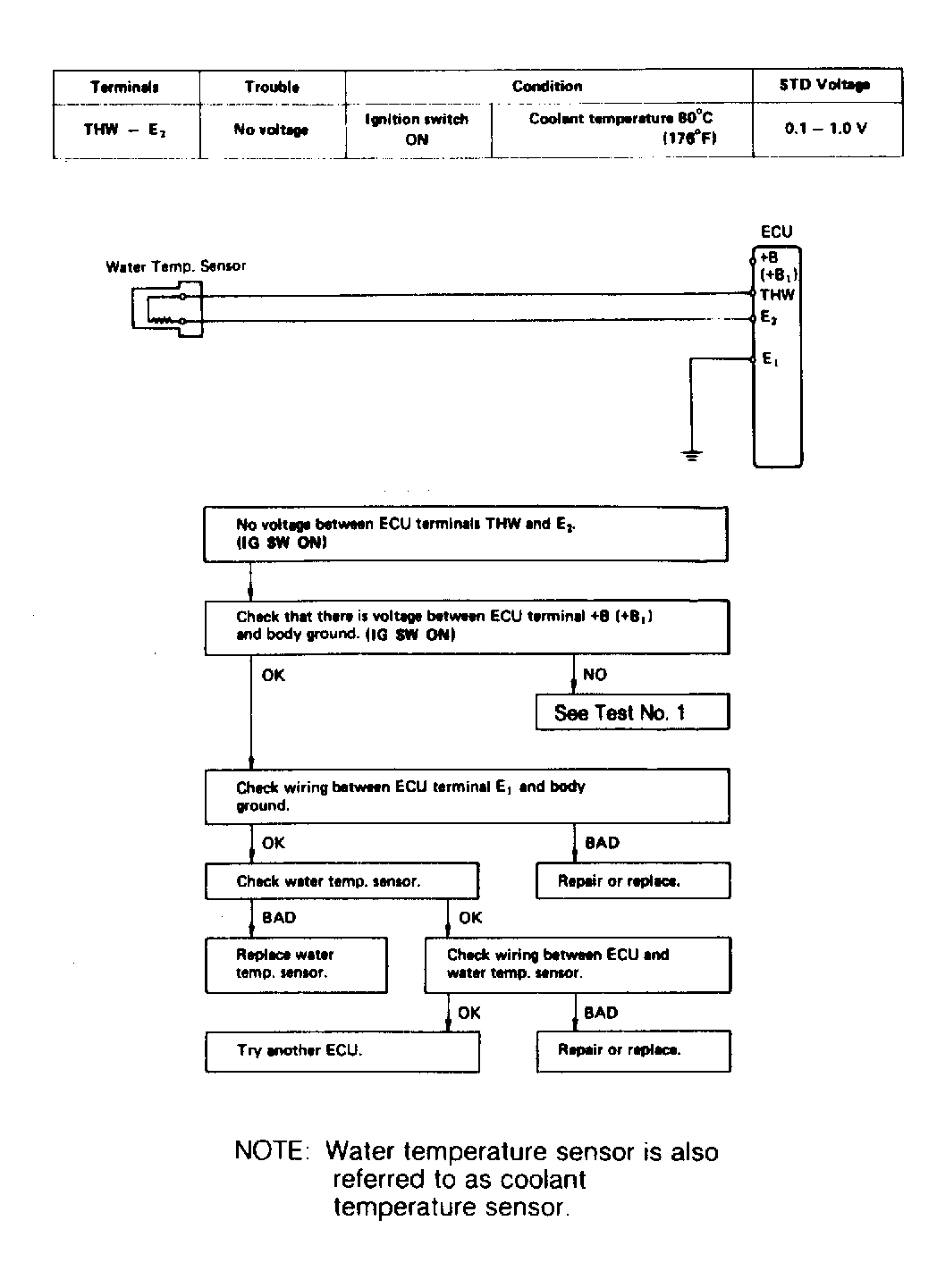

Fig 1: Test 4 Or Code 22 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Water temperature sensor is also referred to as coolant temperature sensor.
