Test 2 Or Code 12, 13, 14 - Ignition & Rpm Signal

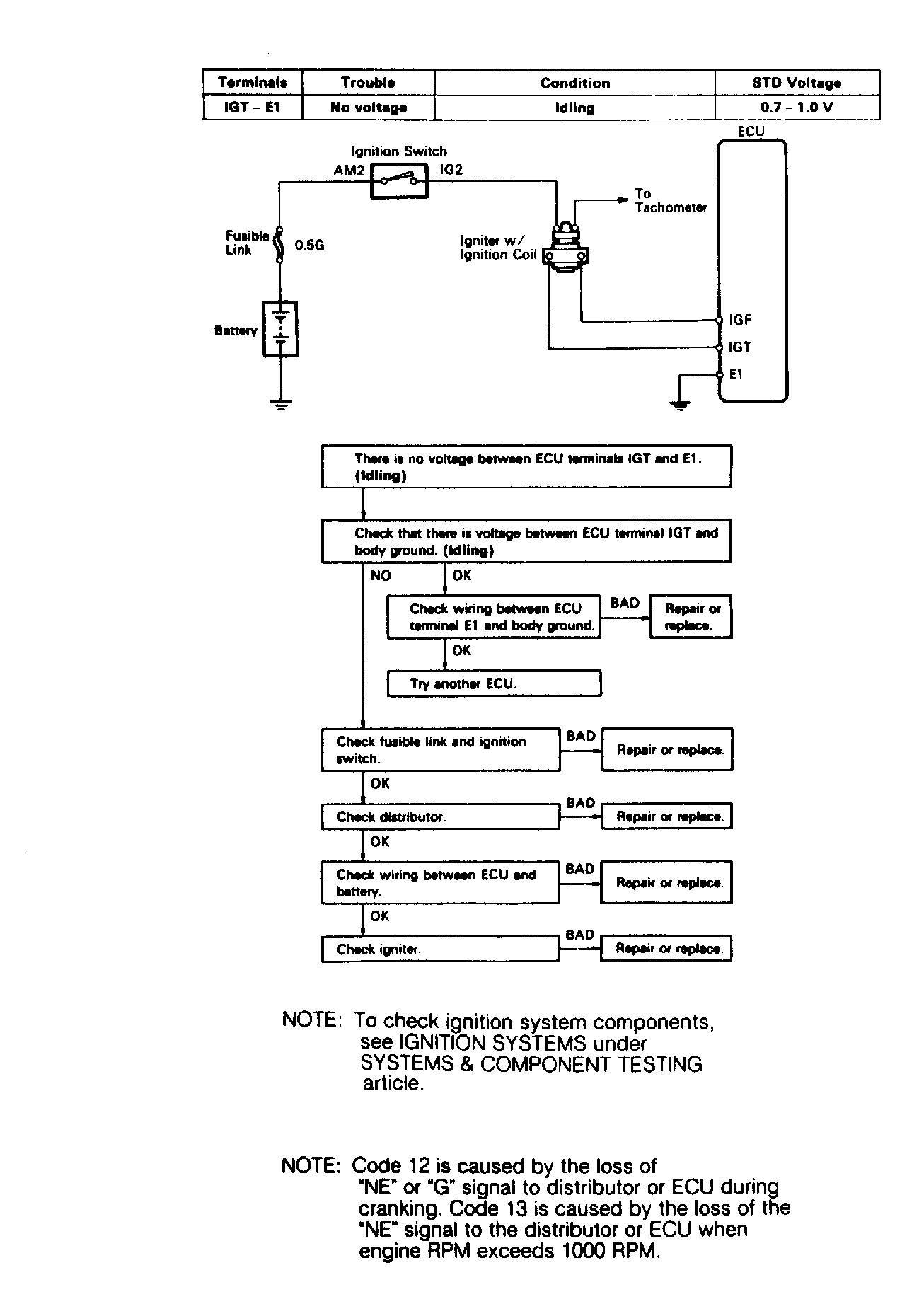

Fig 1: Test No. 2 or Code 12, 13, 14 Diagram & Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: To check ignition system component, see IGNITION SYSTEMS under SYSTEM/COMP TESTS article.

NOTE: Code 12 is caused by loss of "NE" or "G" signal to distributor or ECU during cranking. Code 13 is caused by loss of "NE" signal to distributor or ECU when engine RPM exceeds 1000 RPM.
