Test 5 Or Code 27 - Oxygen Sensor Circuit

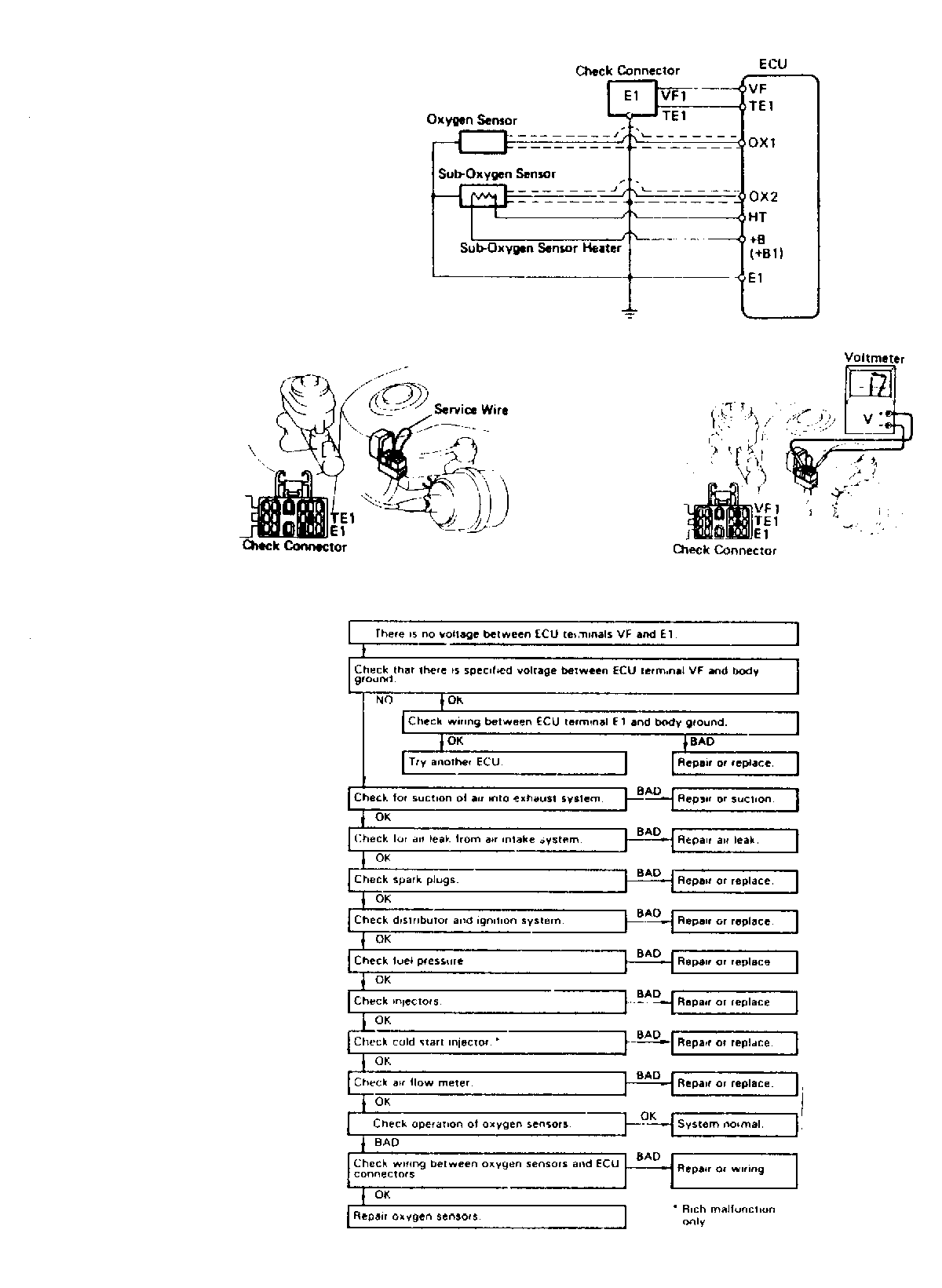

Fig 1: Test No.5 or Code 27 Diagram & Flow Chart

G118710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
