Test 6 Or Code 24 - Intake Air Temp Sensor (4A-FE & 4A-GE)

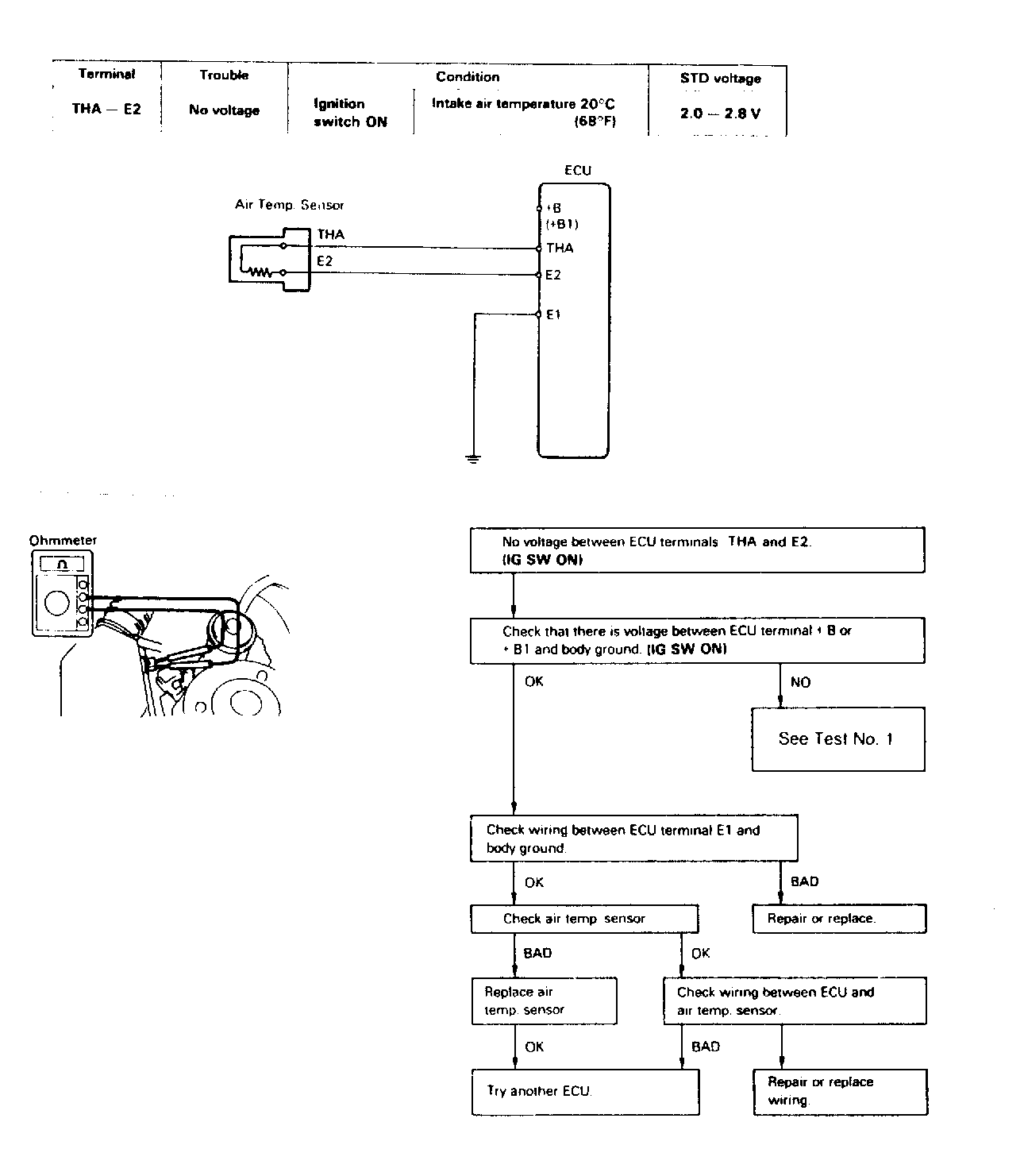

Fig 1: 4A-FE Test No. 6 or Code 24 Diagram & Flow Chart
G118690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

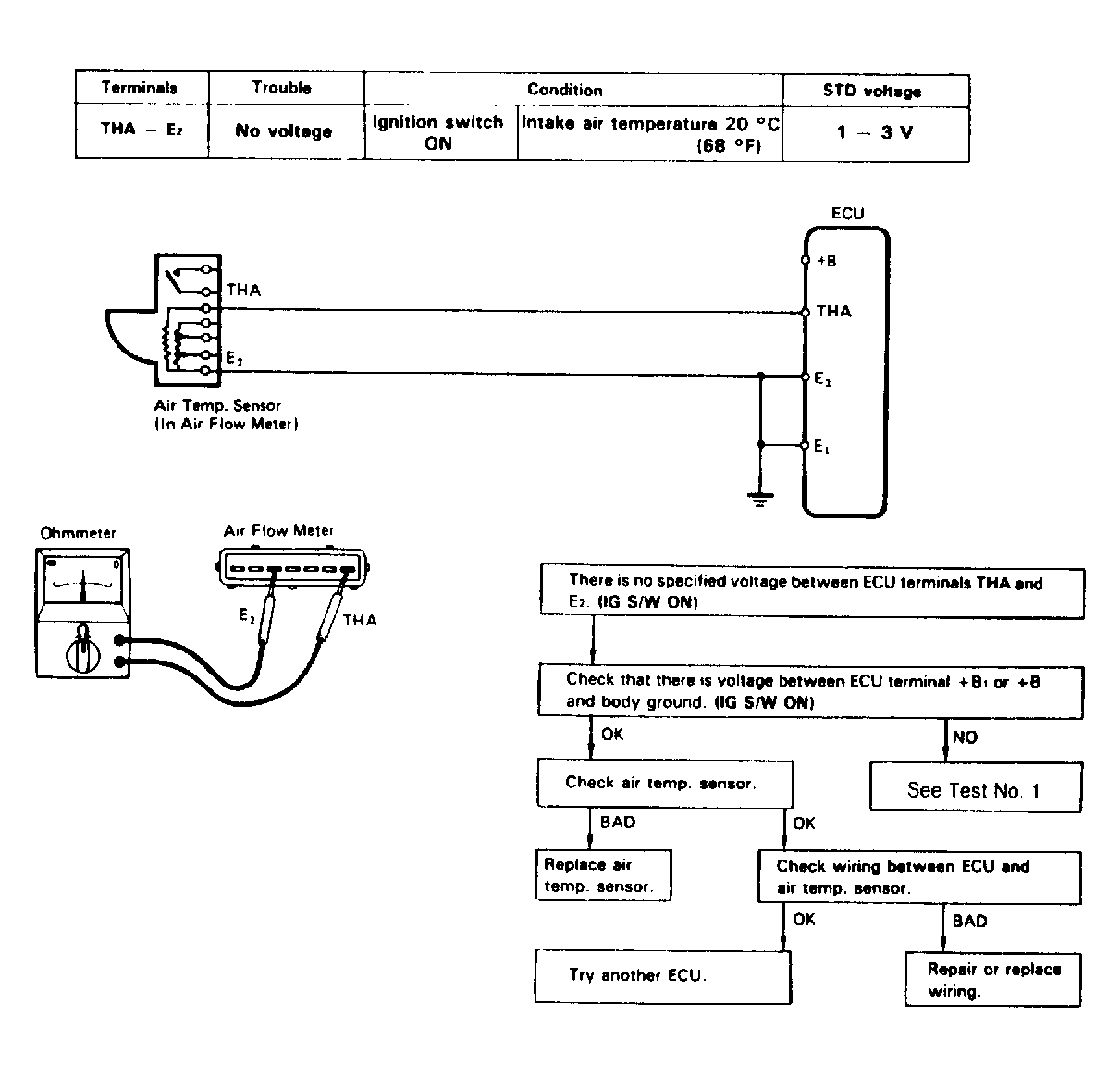

Fig 2: 4A-GE Test No. 6 or Code 24 Diagram & Flow Chart
G118691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
