4A-FE & 4A-GE Diagnostic Circuit Check

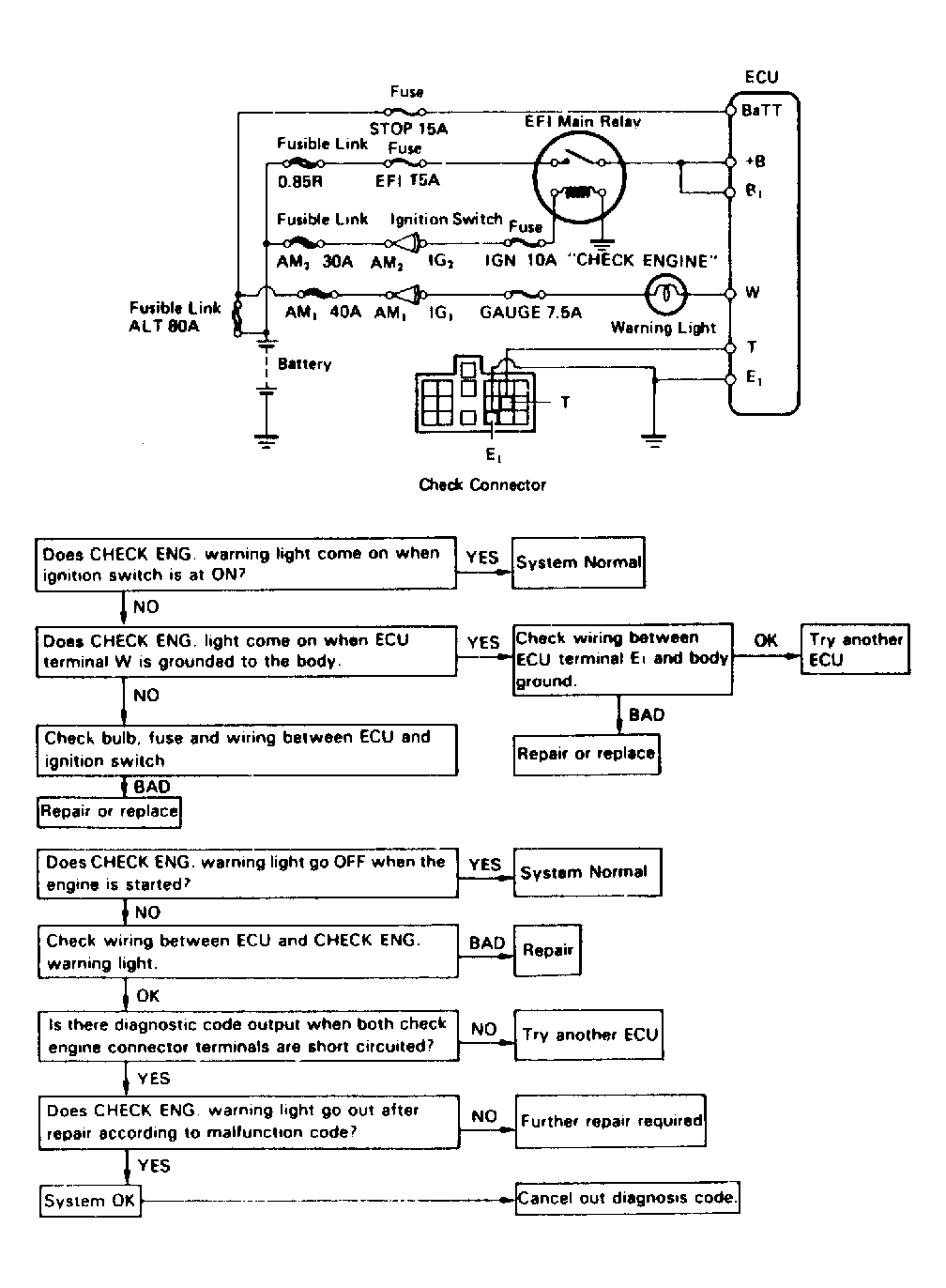

Fig 1: 4A-FE & 4A-GE Diagnostic Circuit Check Diagram & Flow Chart

G118676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
