Test F: Inspection Of Stop Light Switch Circuit

For test procedure, see Fig 1.

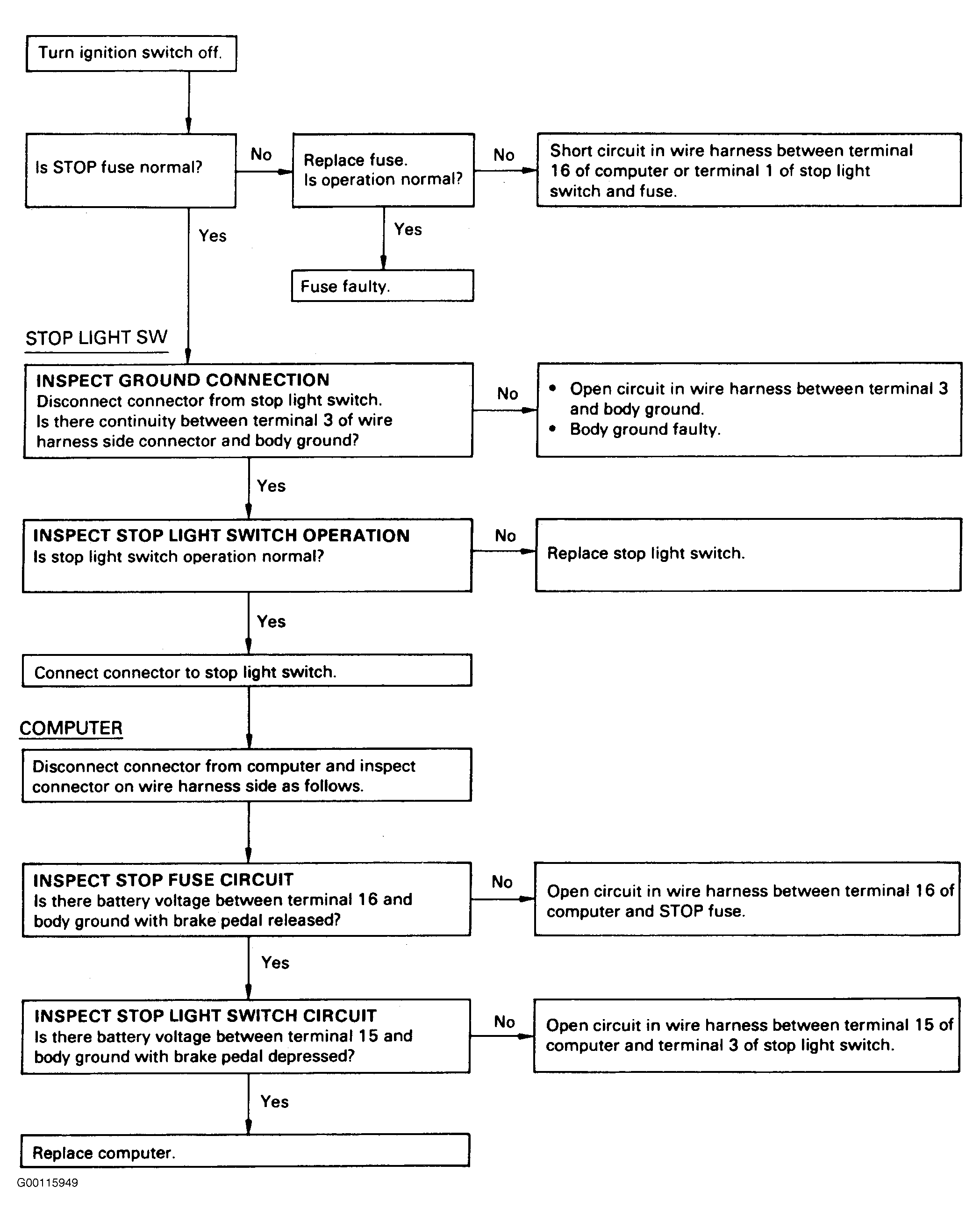

Fig 1: Test F: Inspection Of Stop Light Switch Circuit

G00115949

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
