Test B: Inspection Of Set/Coast Switch Circuit

For test procedure, see Fig 1.

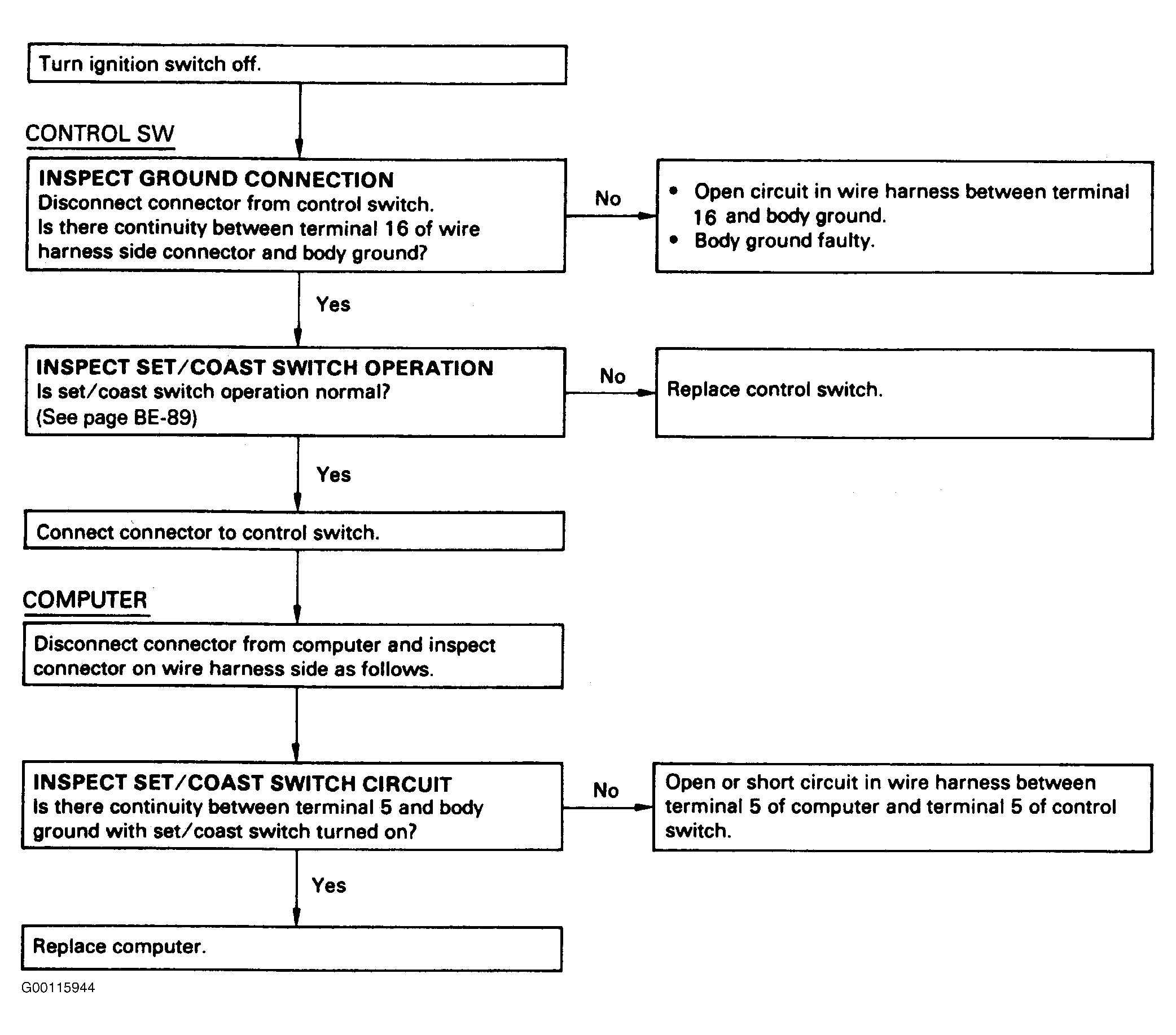

Fig 1: Test B: Inspection Of SET/COAST Switch Circuit

G00115944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
