Test A: Inspection Of Power Source Circuit

For test procedures, see Fig 1 and Fig 2 .

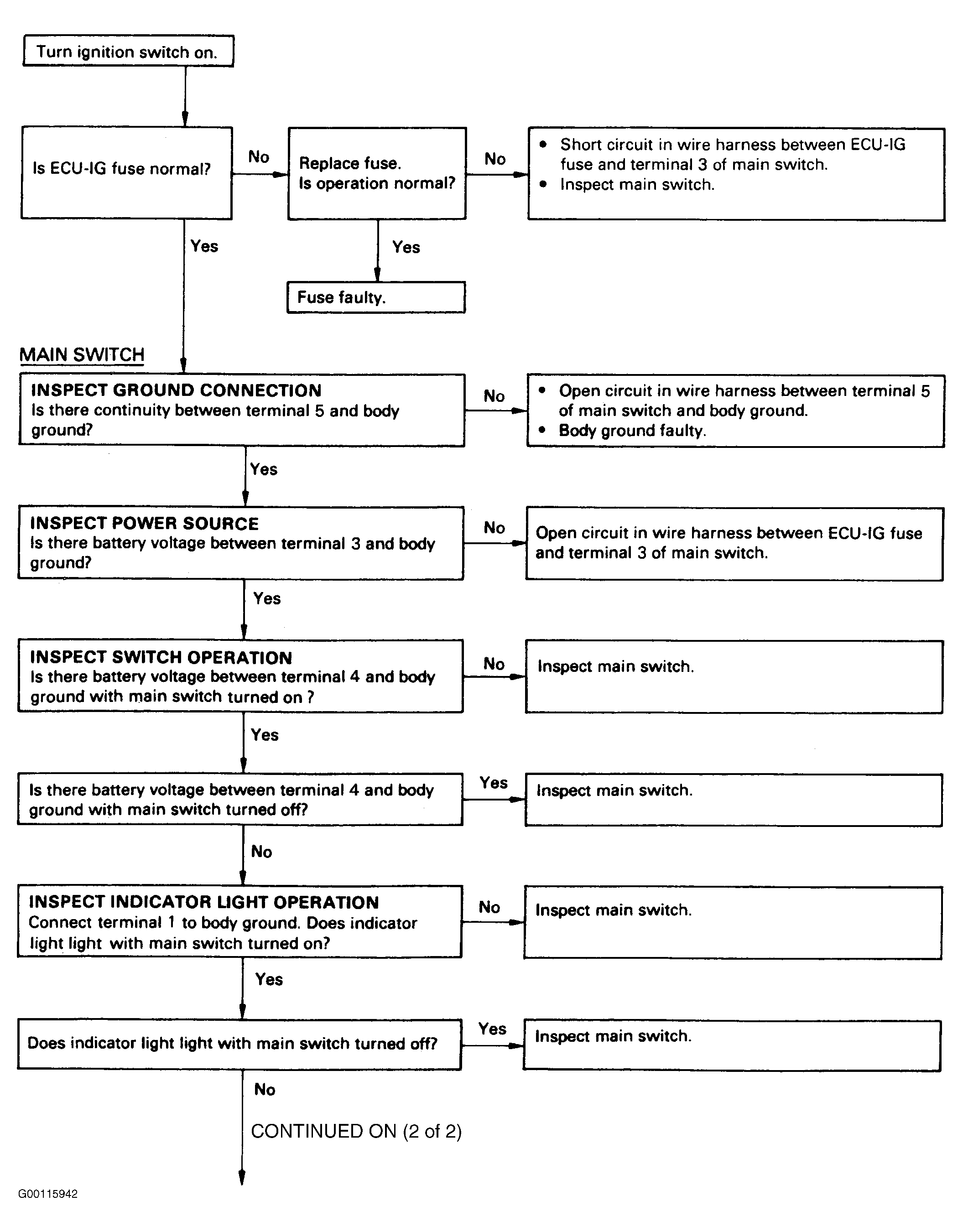

Fig 1: Test A: Inspection Of Power Source Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

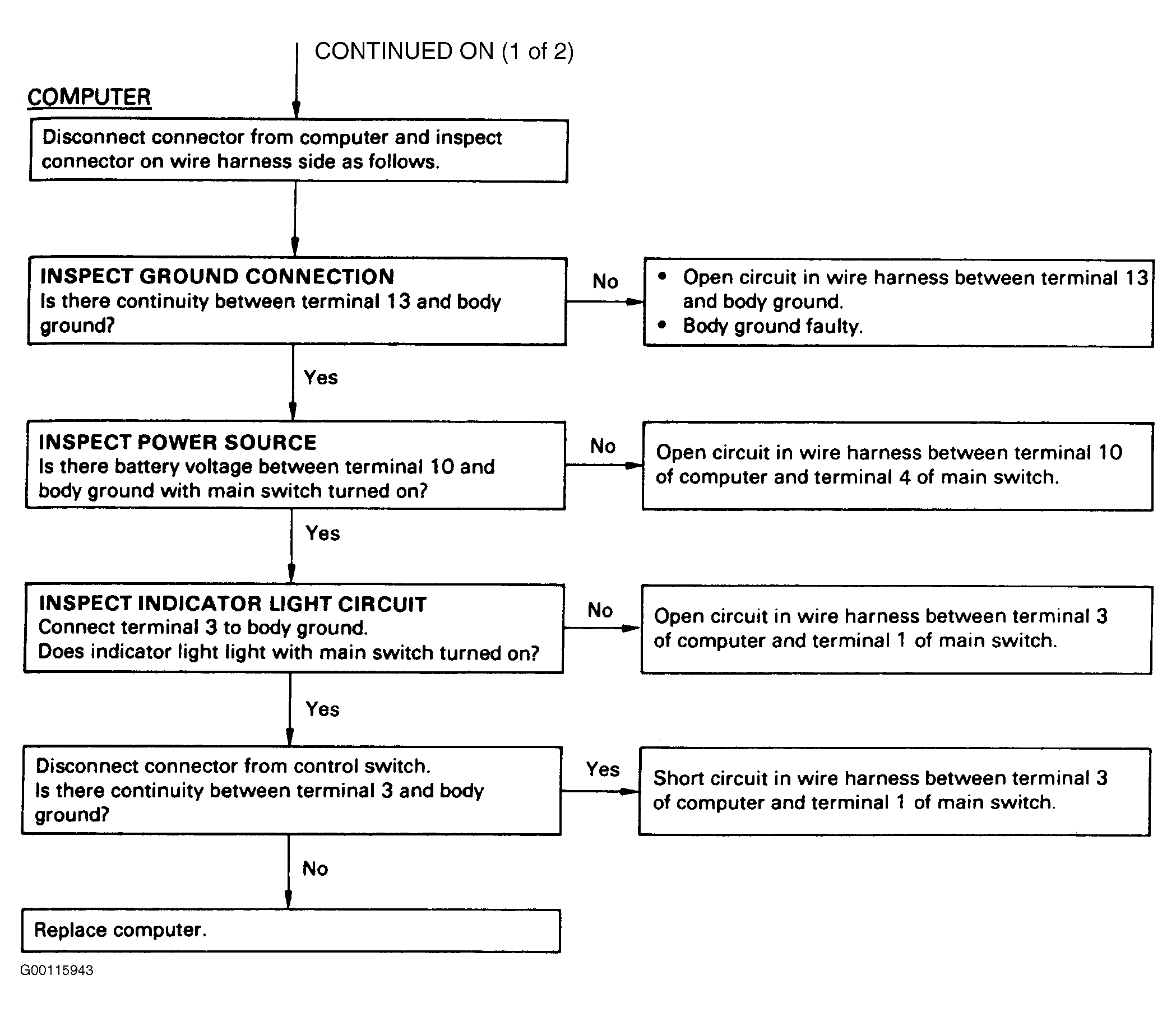

Fig 2: Test A: Inspection Of Power Source Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
