Test 9 - Charging System Circuit

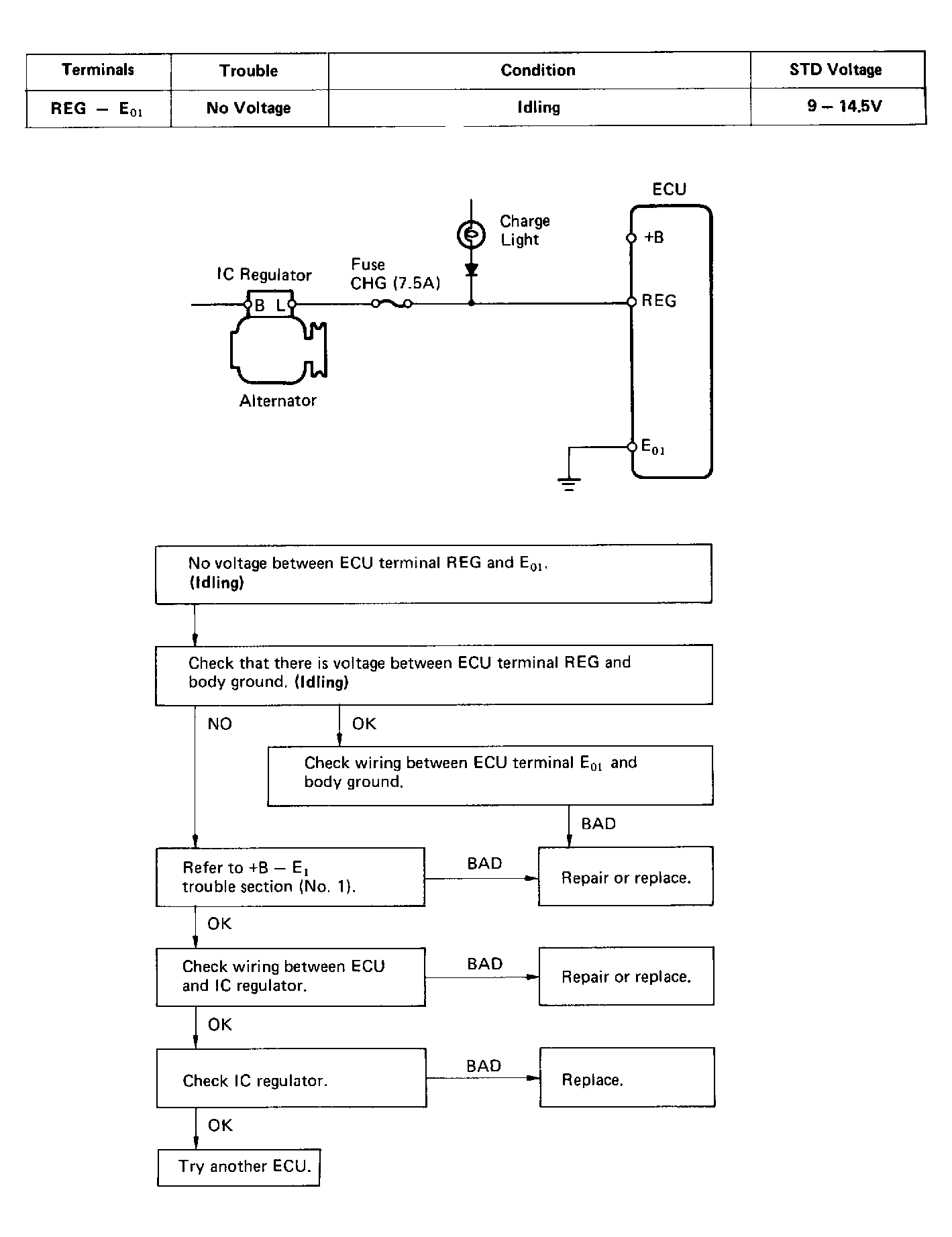

Fig 1: Test 9 Diagram & Flow Chart (22R)

G118767

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
