Engine Controls - Tests W/Codes - 4-CYL CARBURETED
>>
Test 4 Or Code 22 - Coolant Temperature Sensor Signal
Test 4 Or Code 22 - Coolant Temperature Sensor Signal

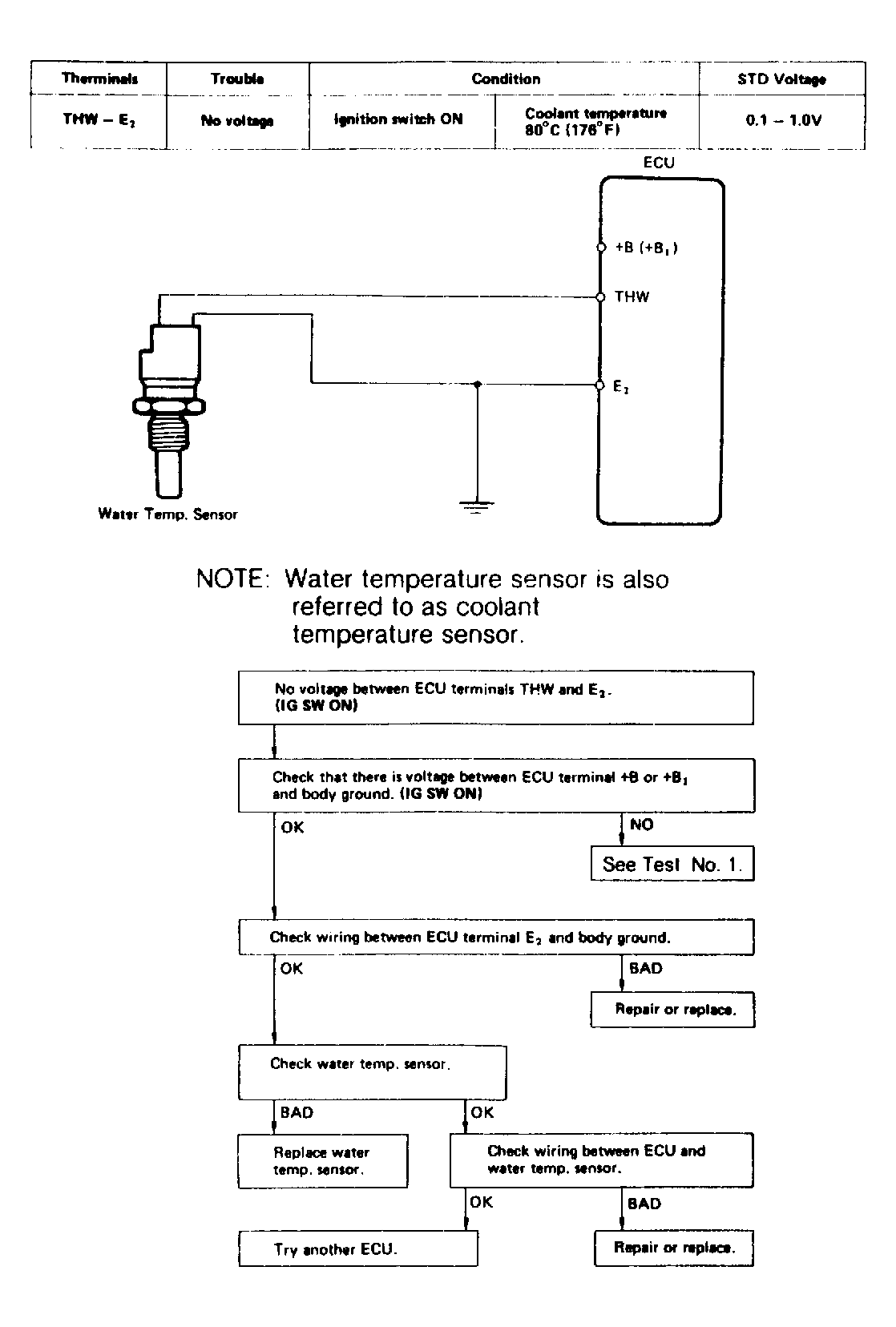

Fig 1: Test 4 or Code 22 Diagram & Flow Chart (22R)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
