Test 2 - Ecu Power Source

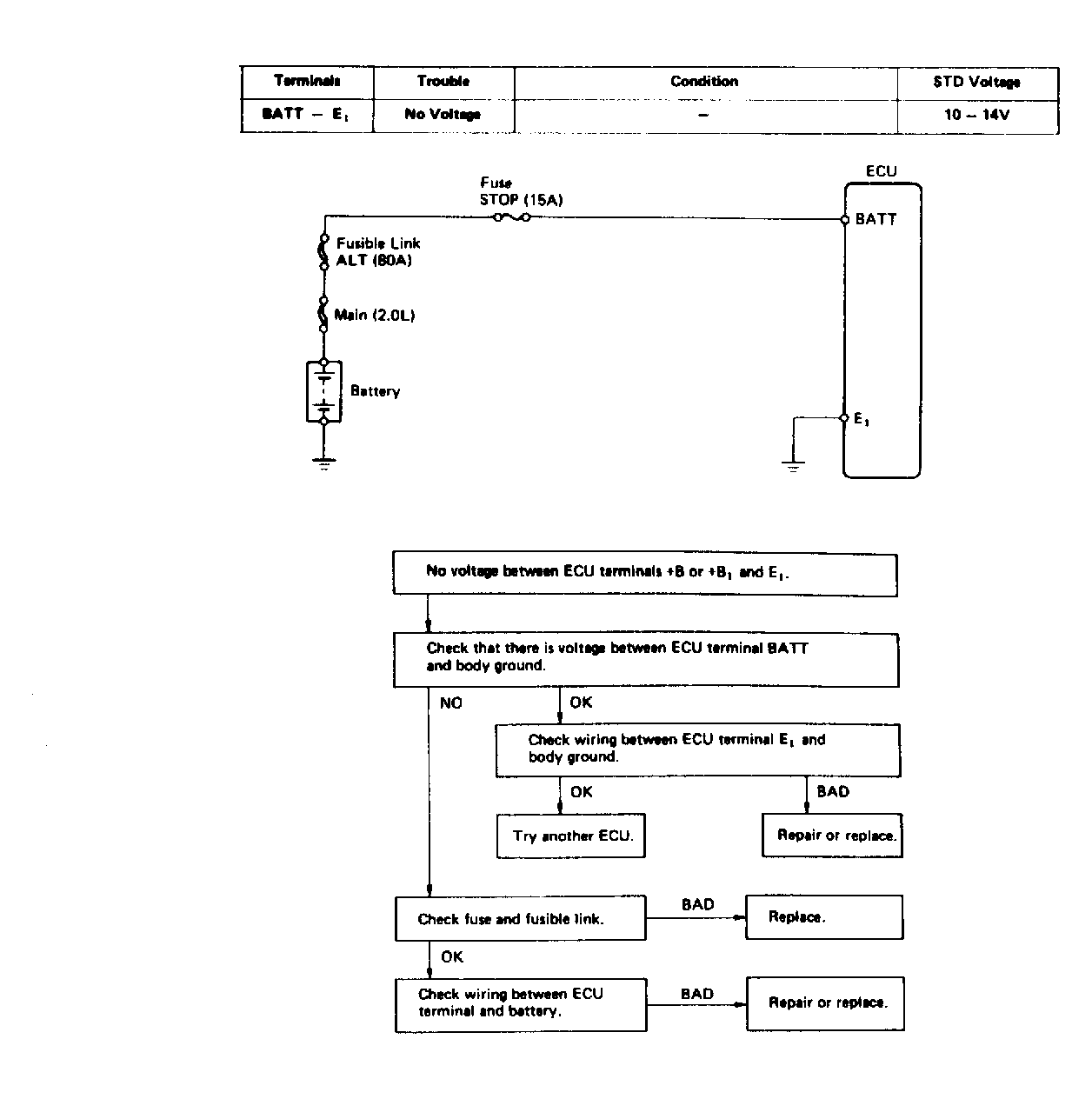

Fig 1: Test 2 Diagram & Flow Chart (22R)

G118759

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
