Cruise Control Computer Circuit: Van

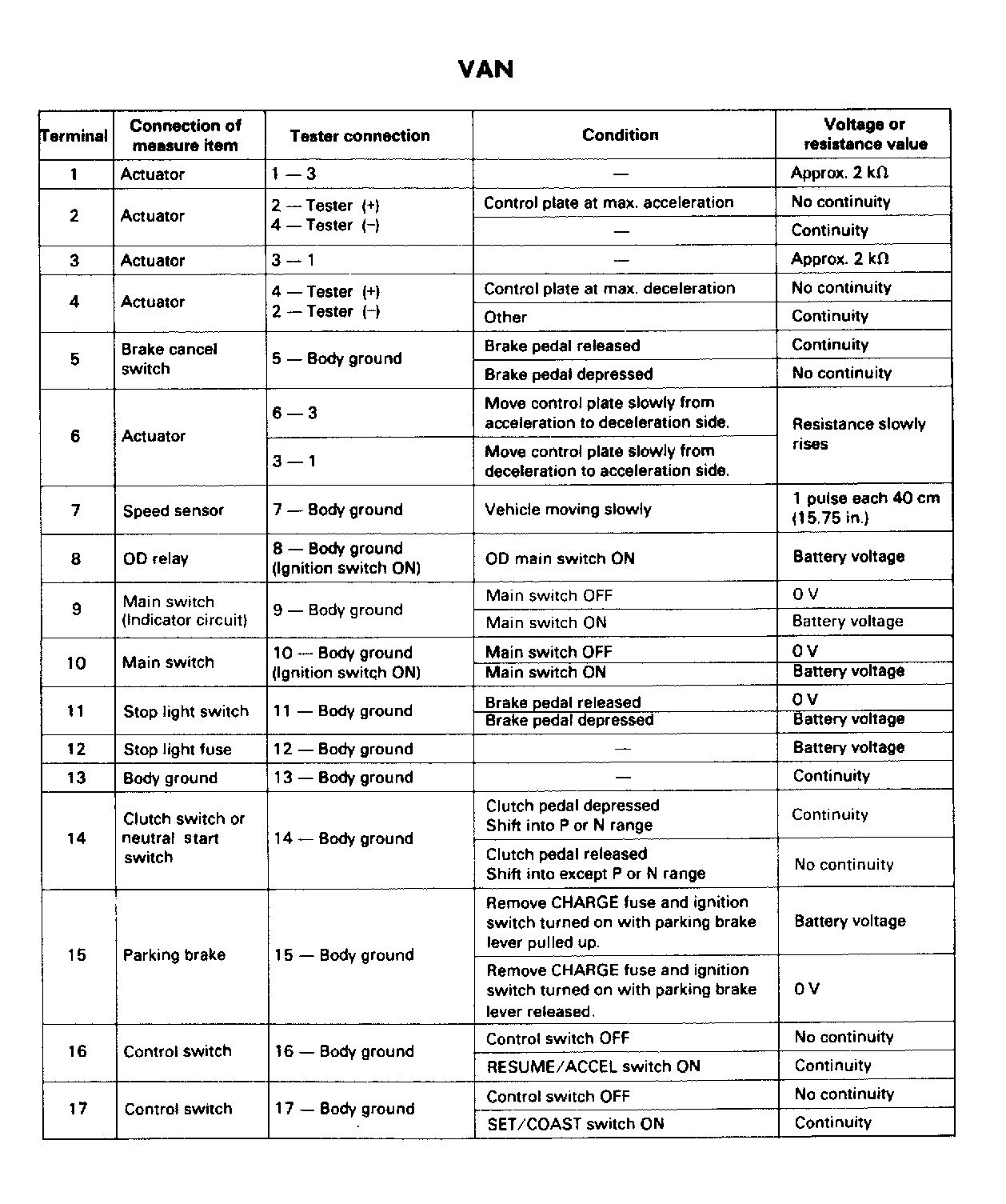

Fig 1: Cruise Control Computer Circuit Test Sequence (Van)

G102923

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
