Diagnostic Circuit Check

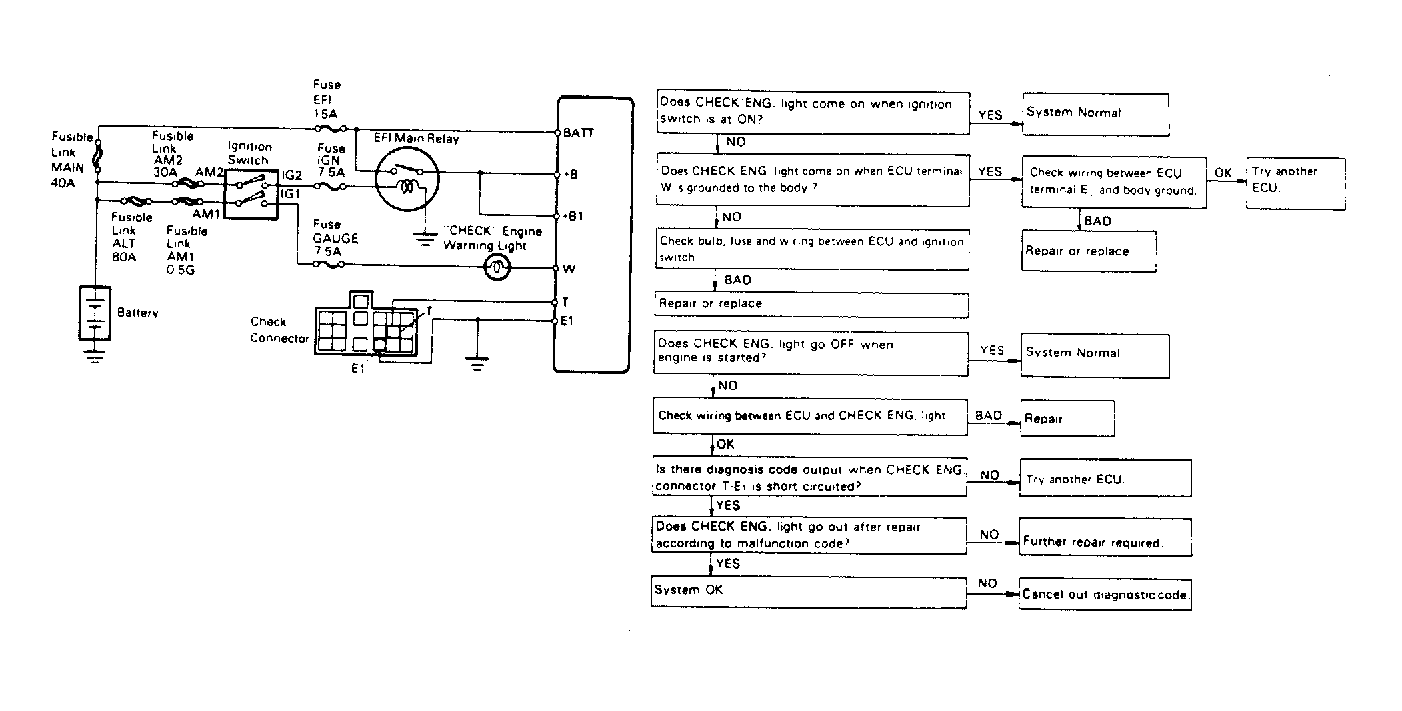

Fig 1: Diagnostic Circuit Check

G74066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
