Code 43 Ignition & Starter

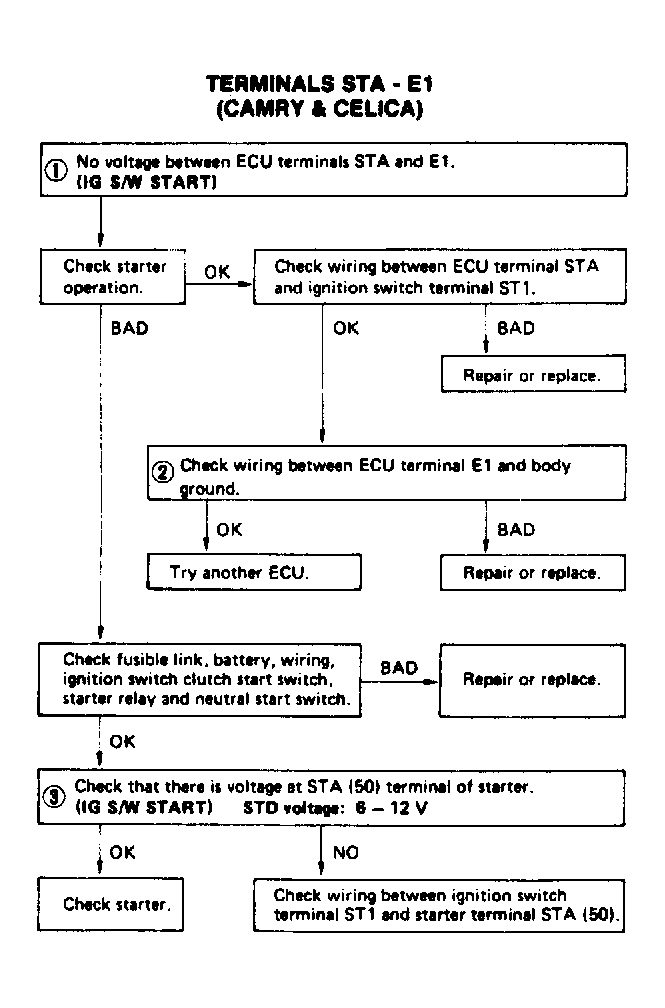

Fig 1: Terminals STA - E1 (1 Of 2)

G62144

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Terminals STA - E1 (2 Of 2)

G62143

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
