Trouble Code 6 - Igniter & Circuit

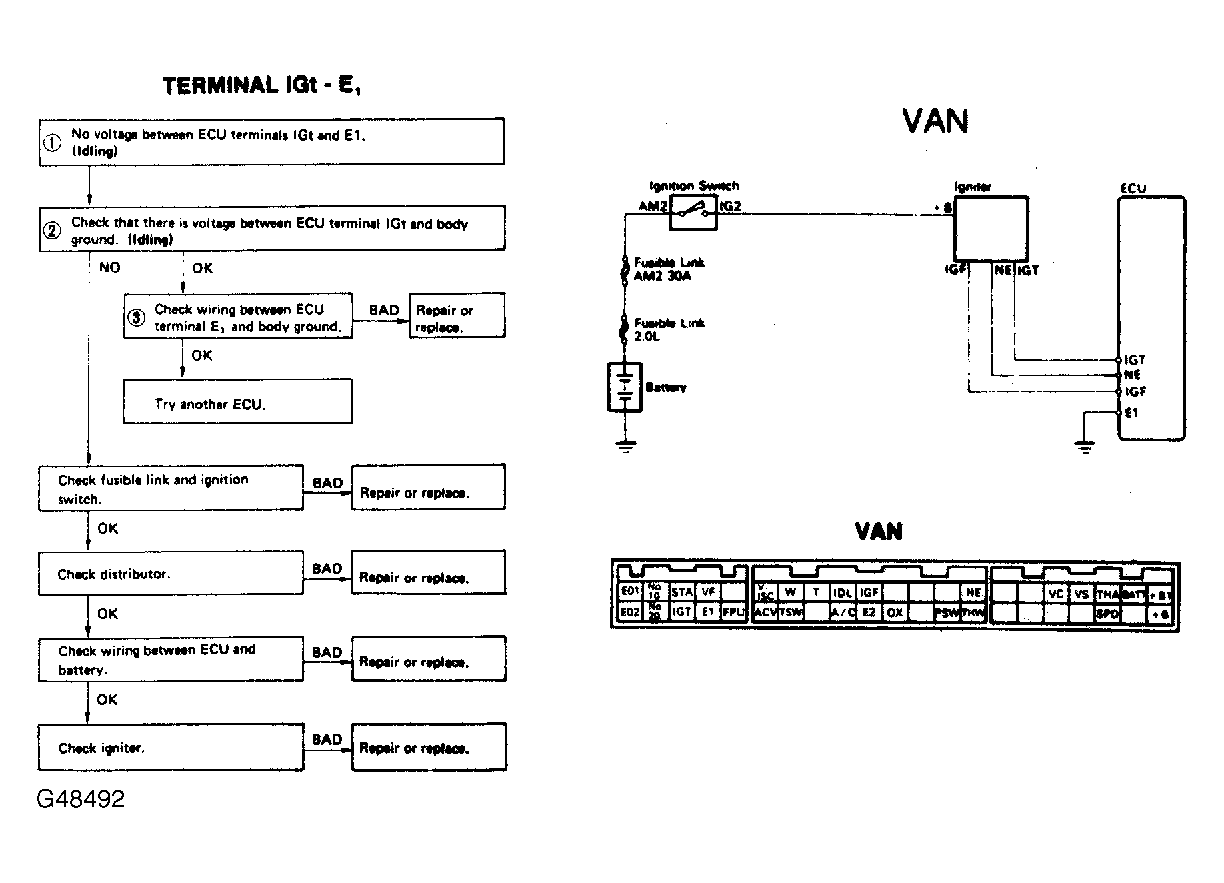

Fig 1: Terminal IGt - E1

G48492

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
