Cruise Control Computer Circuit

Turn ignition off and disconnect electrical connector from computer. Ensure terminals are clean and in good condition. Test circuits using SUPRA or VAN CRUISE CONTROL COMPUTER CIRCUIT TEST SEQUENCE charts.

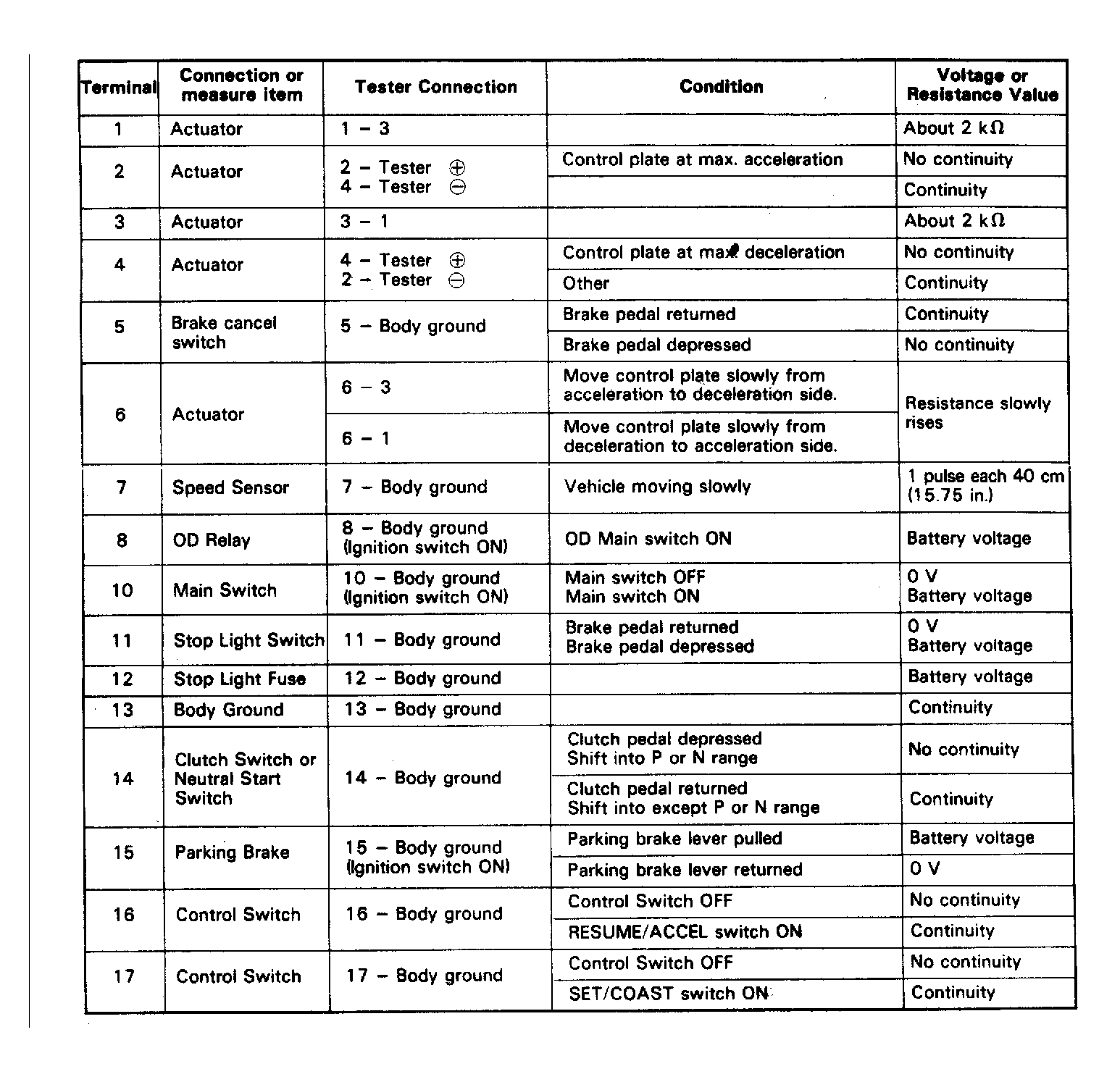

Fig 1: Cruise Control Computer Circuit Test Sequence (Supra)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Cruise Control Computer Circuit Test Sequence (Van)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
