"Check Engine" Light "Off"

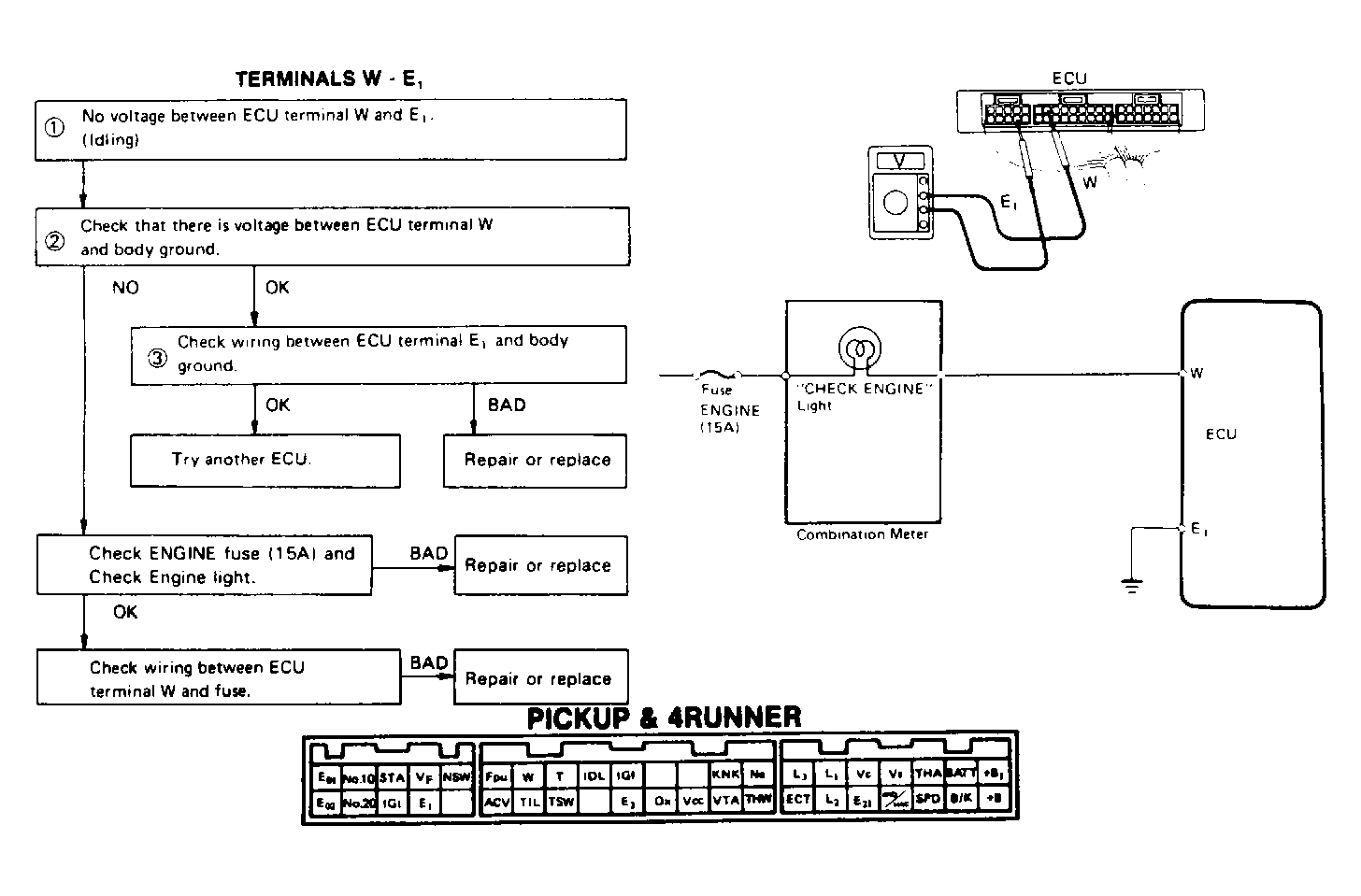

Fig 1: Terminals W - E1

G48557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
