Trouble Code 8 Intake Air Temp. Sensor & Circuit

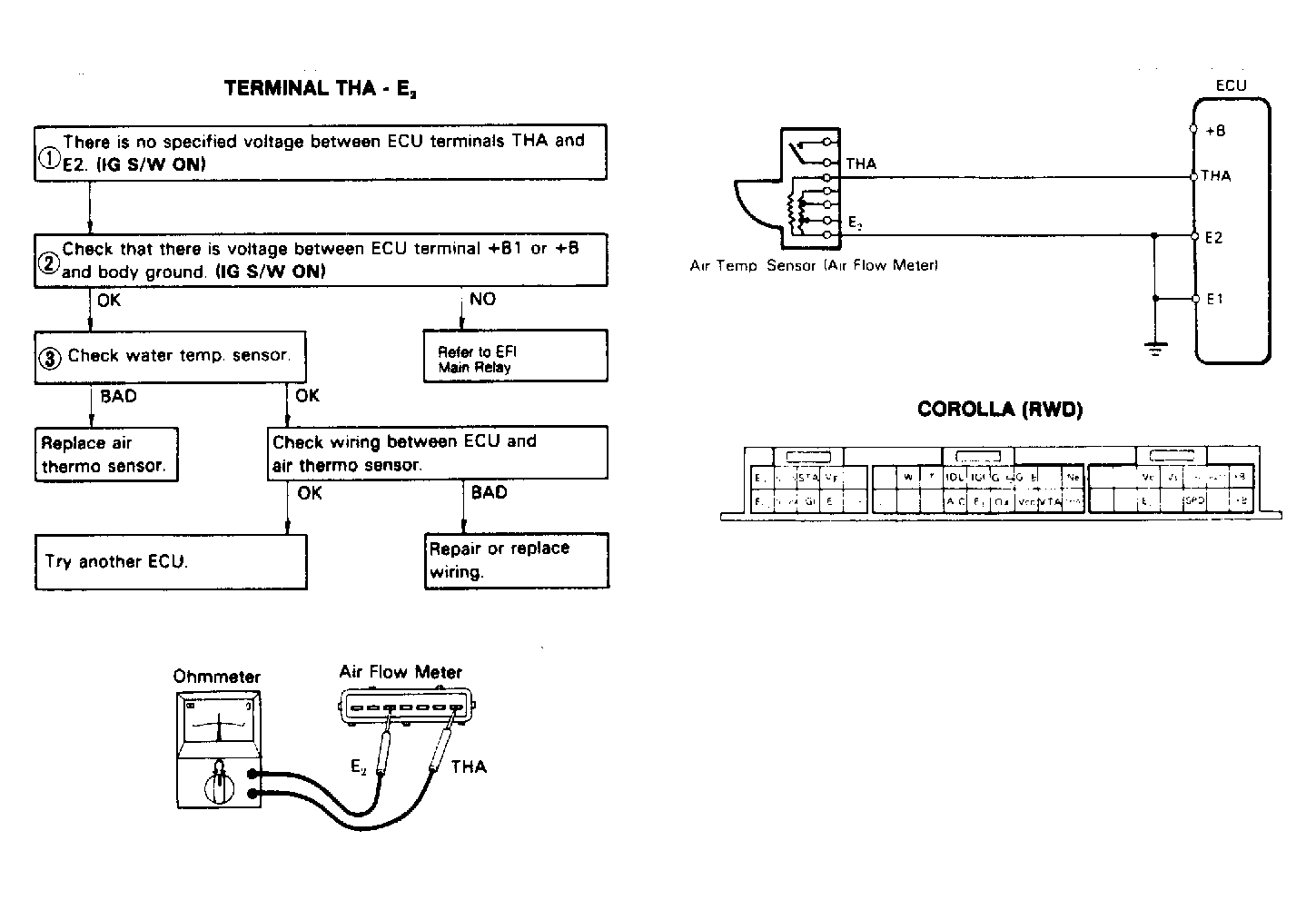

Fig 1: Terminals THA - E2

G48520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
