Trouble Code 7 TPS Sensor & Circuit

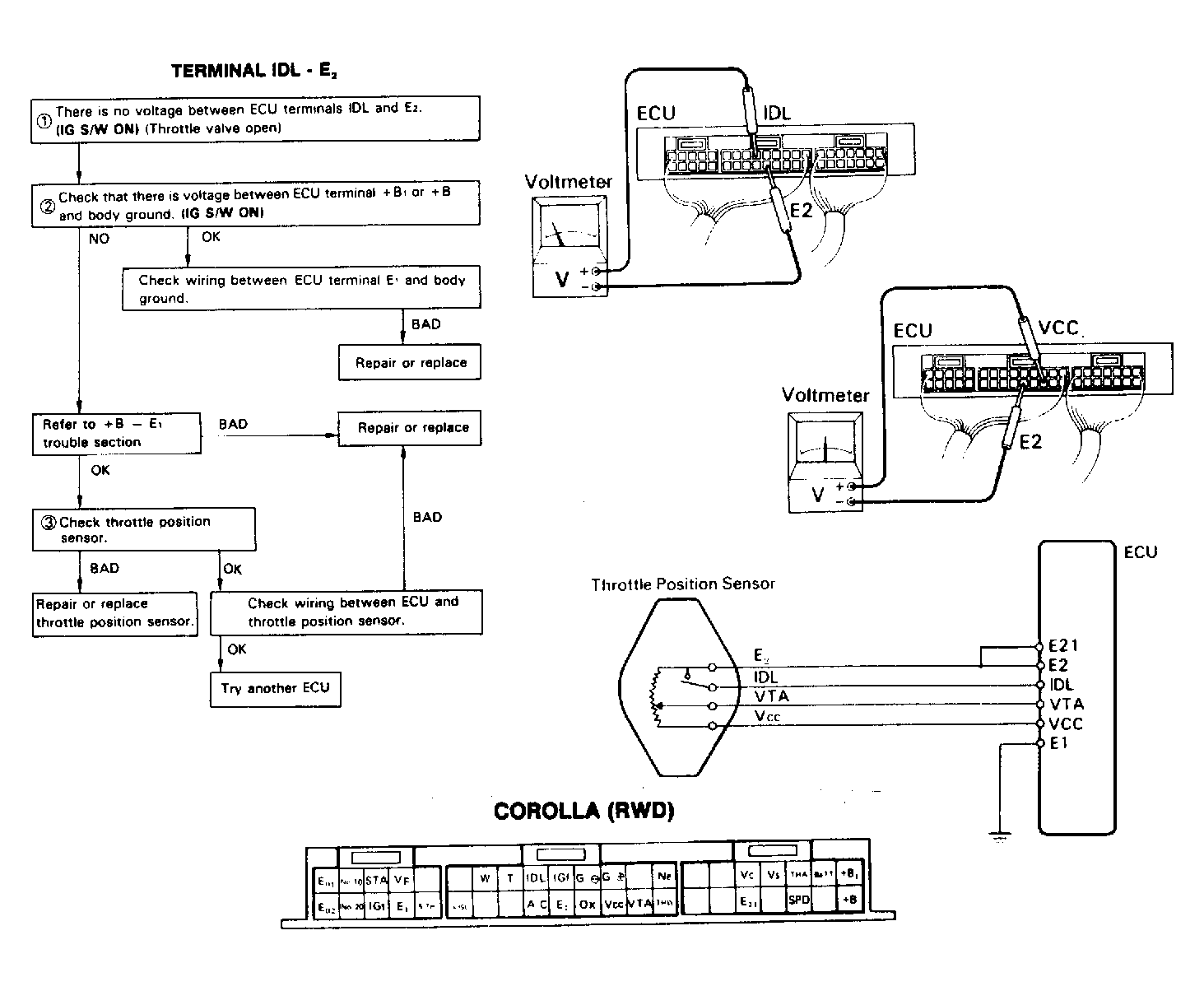

Fig 1: Terminal IDL - E2
G48511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

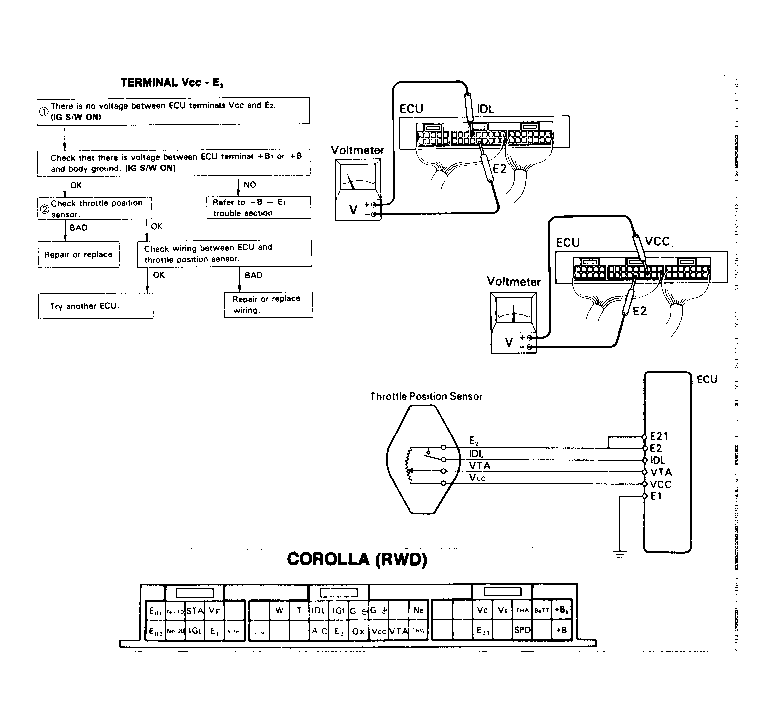

Fig 2: Terminal Vcc - E2
G48512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

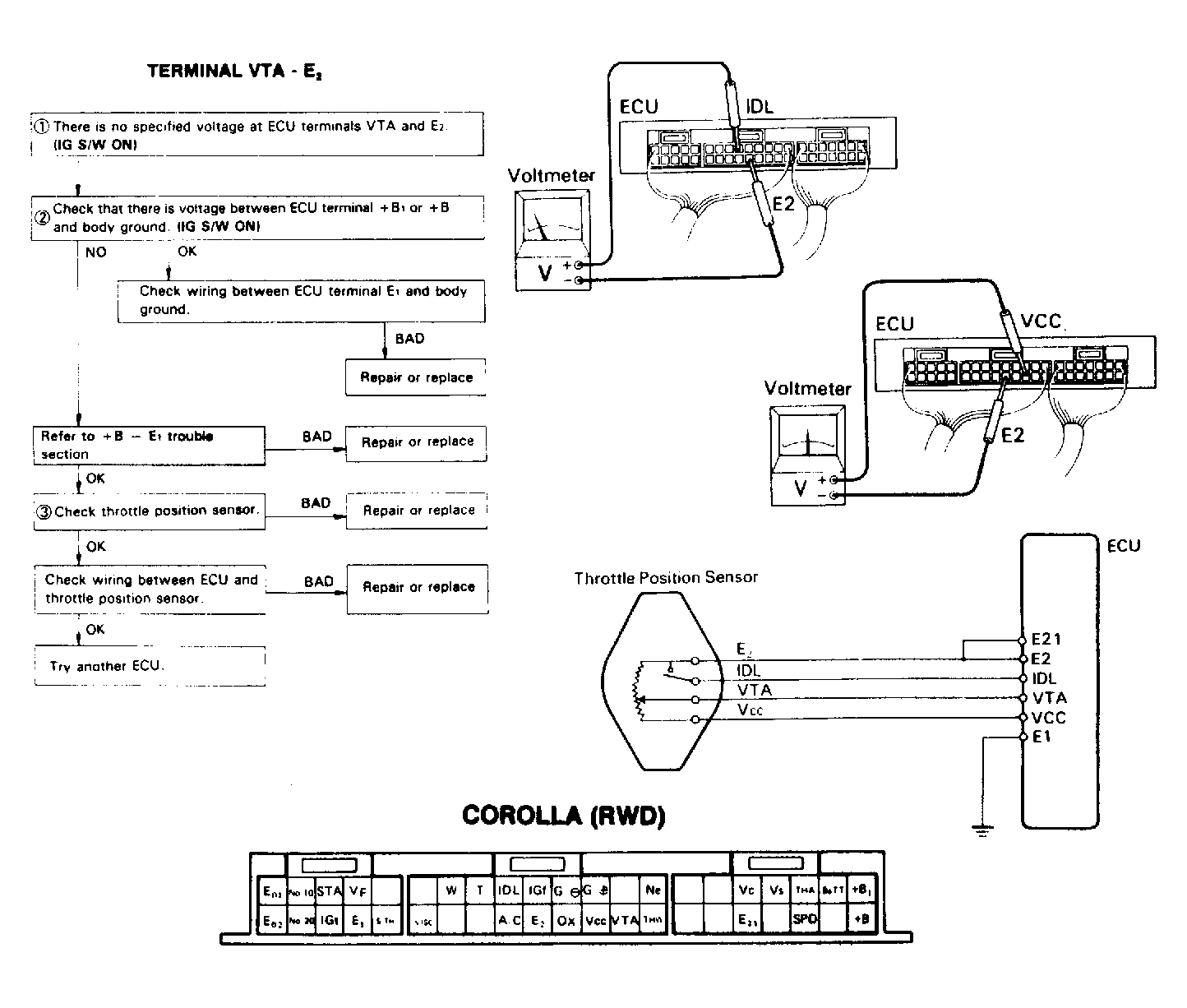

Fig 3: Terminal VTA - E2
G48513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
