Trouble Code 41 TPS Sensor & Circuit
Trouble Code 41 TPS Sensor & Circuit

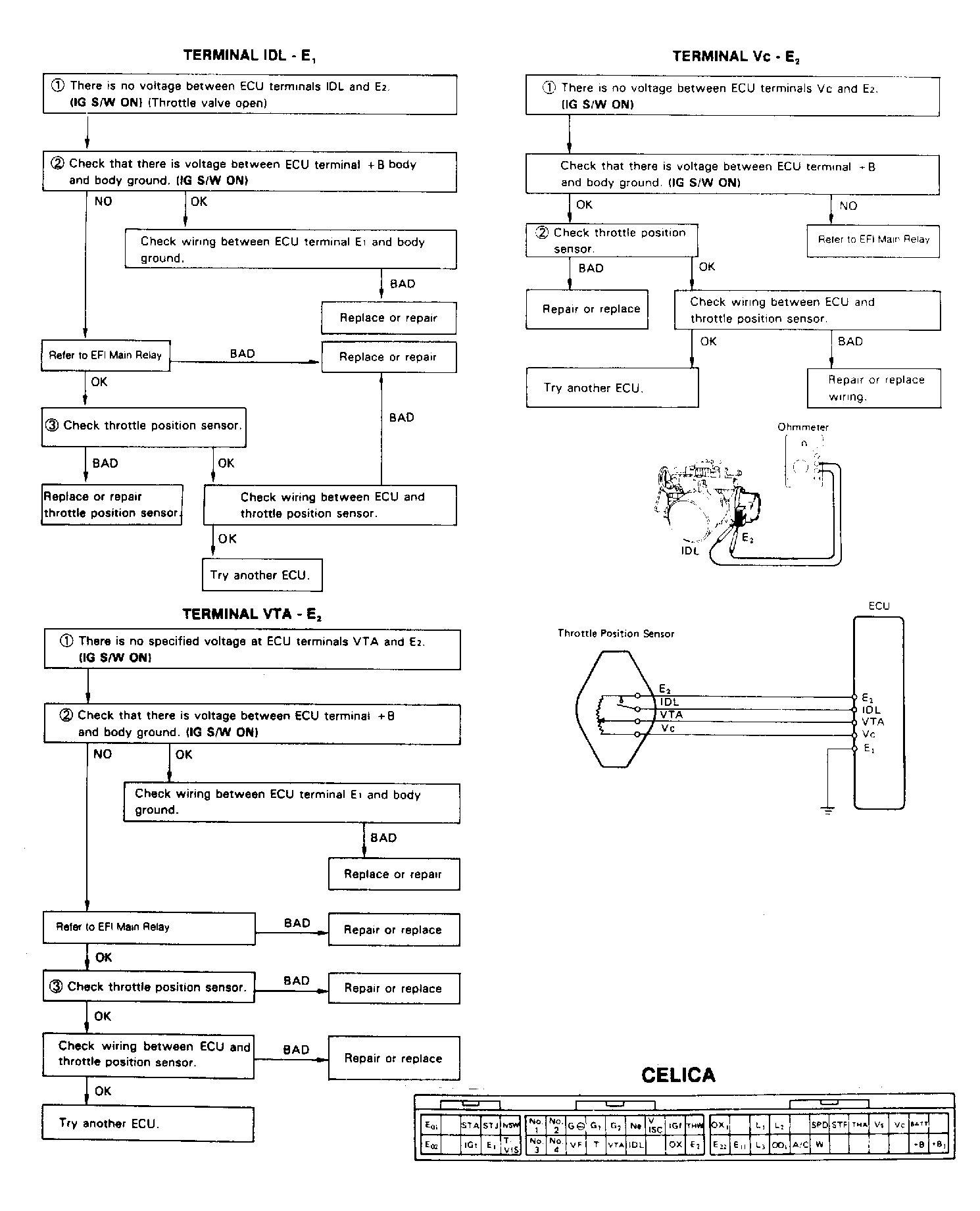

Fig 1: Celica (3S-GE) Terminals IDL & E1, Terminals VTA & E2 & Terminals Vc & E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
