Repair and Diagnosis
>>
Engine Performance
>>
System
>>
TCCS System
>>
Diagnosis & Testing
>>
Trouble Code 11 Main Relay & Circuit
Trouble Code 11 Main Relay & Circuit

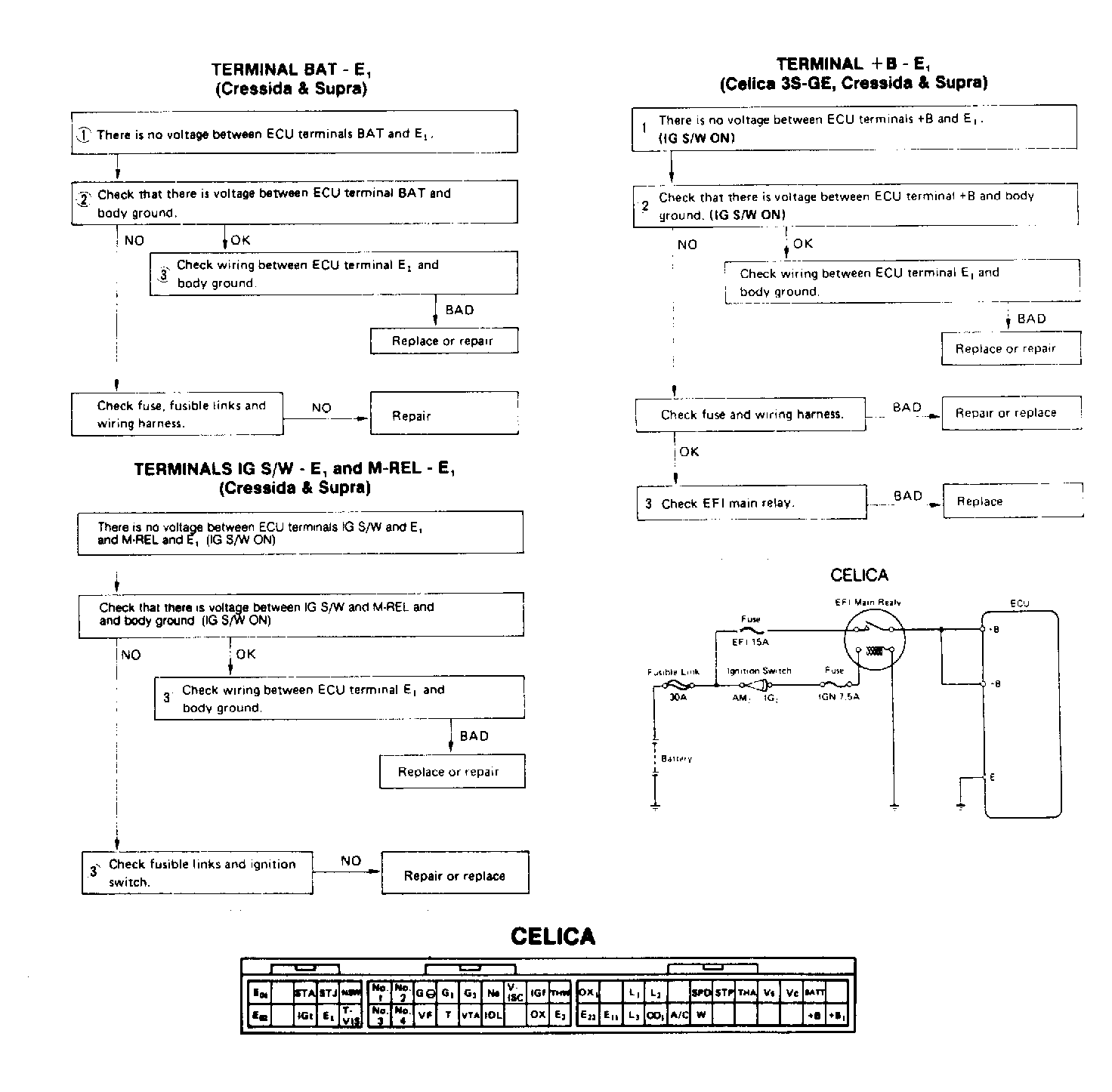

Fig 1: Terminals BAT - E1, Terminals IG S/W - E1 & M-REL - E1 & Terminals +B = E1
