Trouble Codes 2 & 3 - Blinks Air Flow Meter & Circuit

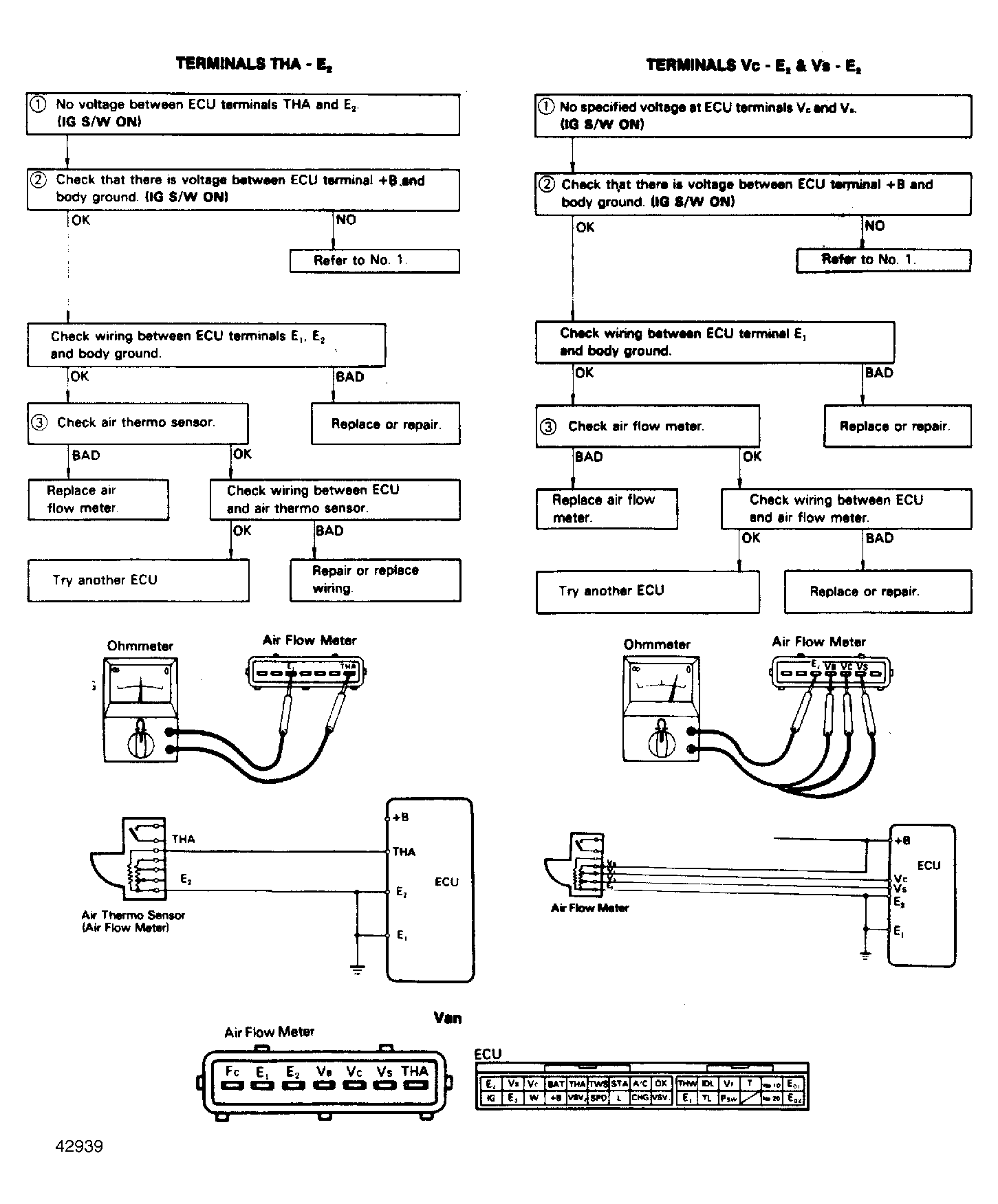

Fig 1: Terminals THA - E2 & Terminals Vc - E2, Vs - E2
G42939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
