A/C Not Cooling - REPL A/C Compressor Line O-Rings (VOL. 8, ACC, NO. 003)

Publication date: 1985-09-01
Reference number: VOL. 8, ACC, NO. 003

A/C NOT COOLING - REPL A/C COMPRESSOR LINE O-RINGS

TECHNICAL SERVICE BULLETIN

Reference Number(s): VOL. 8, ACC, NO. 003, Date of Issue: September, 1985

AIR CONDITIONER NOT COOLING

Model(s): 1982-85 Toyota Vehicles with Air Conditioning

Volume: 8

Reference: Accessories

Bulletin No.: 003

Date: September, 1985

CONDITION & CAUSE

Some 1982-85 Toyota vehicles equipped with air conditioned may exhibit a failure of the air conditioning to cool the air. This condition may be caused by refrigerant (R-12) that is leaking from the line fittings.

DIAGNOSIS & REPAIR

Inspect all fitting for obvious leakage. Replace the line connection "O" rings with new "O" rings. Always oil "O" rings prior to installation and use care not to overtighten the "O" rings. Overtightening will cause "O" rings to deform and leak.

A/C FITTING TIGHTENING SPECIFICATIONS

Tube Diameter-Nut Size	Tightening Specification
3/8" - 11/16" (17 mm)	10 ft-lbs. (13 N.m)
1/2" - 7/8" (22 mm)	16 ft-lbs. (21 N.m)
5/8" - 1/16" (26 mm)	24 ft-lbs. (32 N.m)

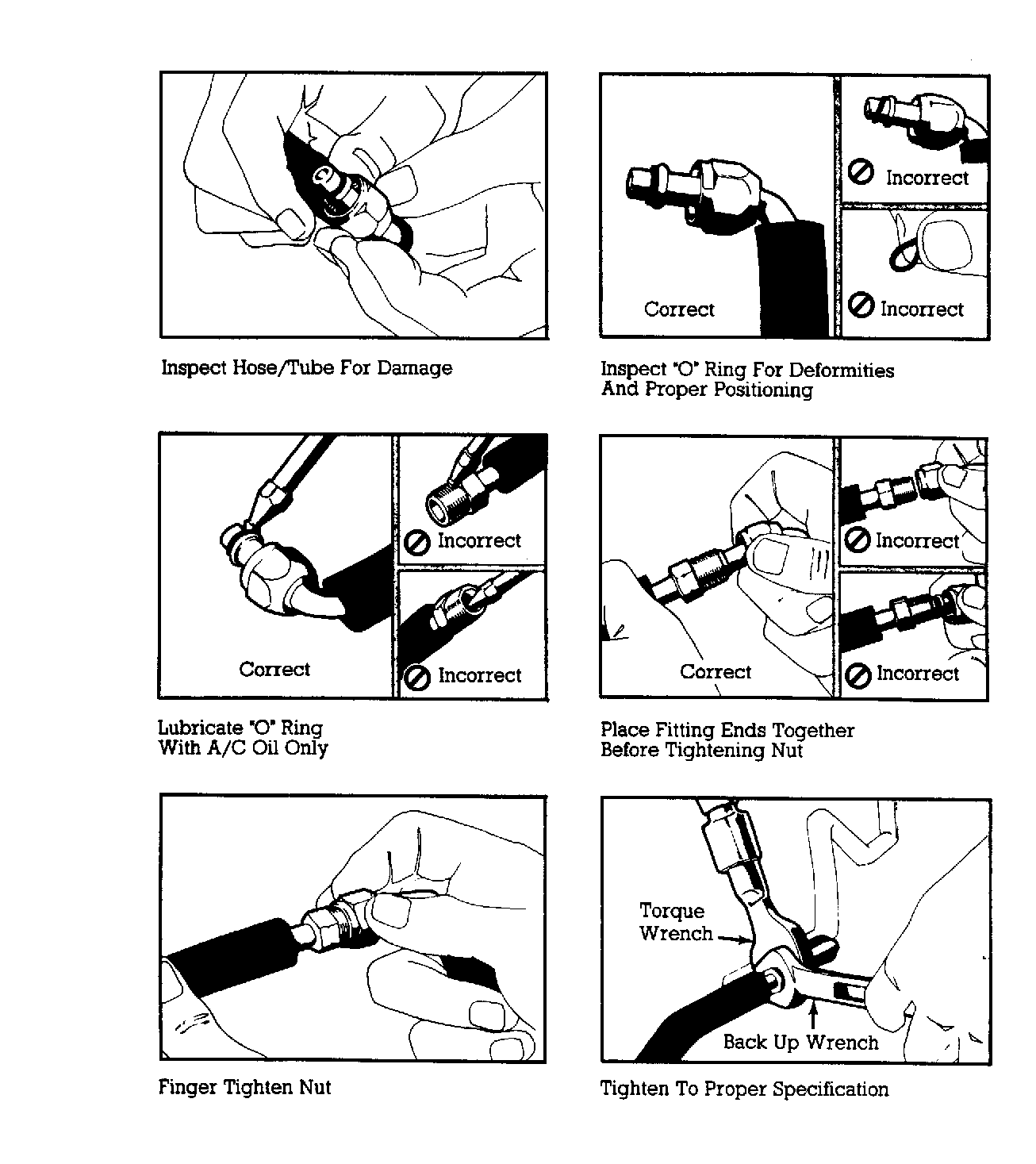

Fig 1: Installing A/C "O" Rings - Toyota A/C Units
