Home >> Toyota >> 1985 >> Celica ST >> Repair and Diagnosis >> Engine Performance >> System >> TCCS System >> System Testing >> Trouble Code 10 Blinks Ignition & Starter Circuit

Trouble Code 10 Blinks Ignition & Starter Circuit

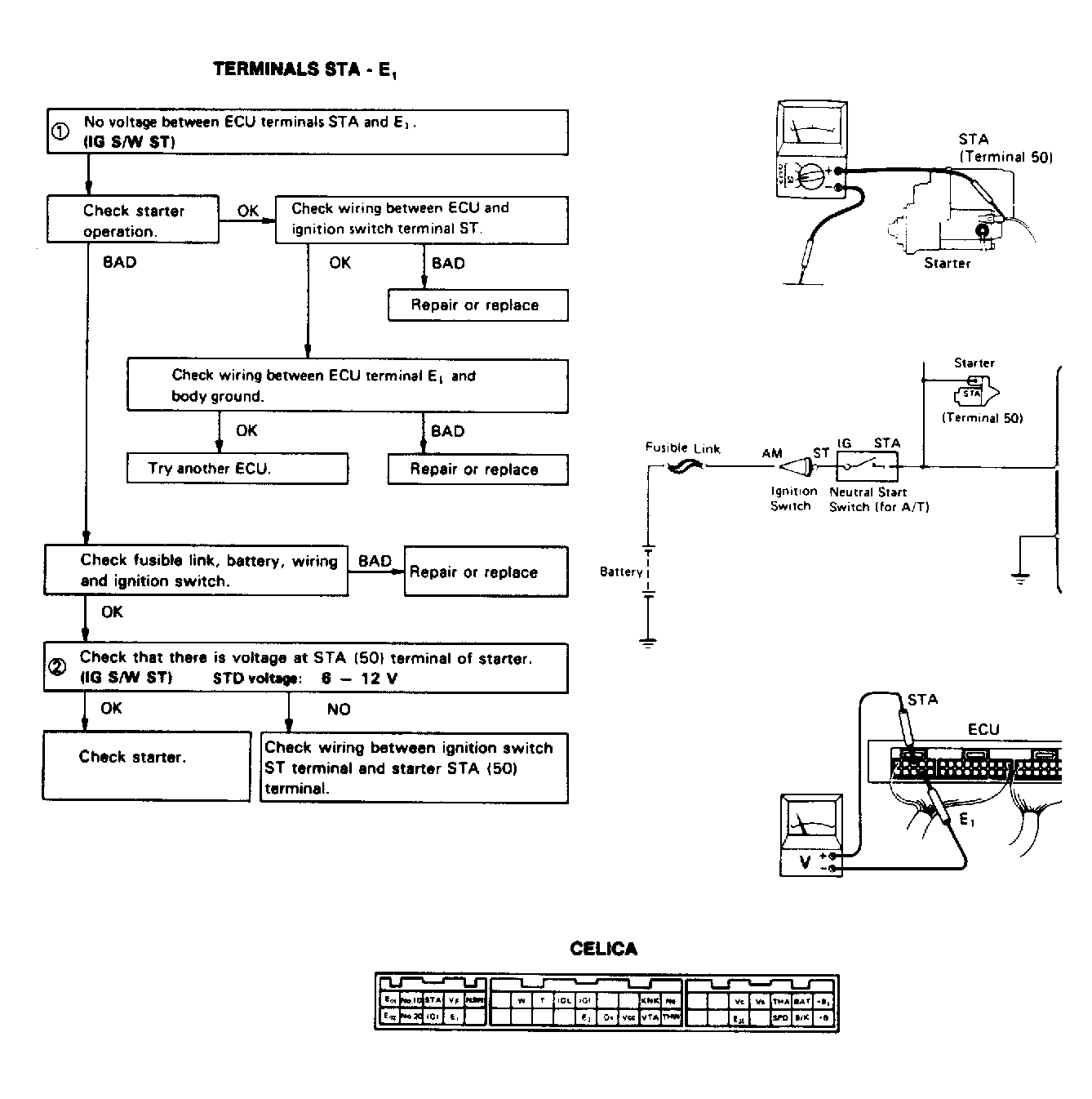

Fig 1: Terminals STA - E1

G42884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
