Ecu Connector Identification
Ecu Connector Identification

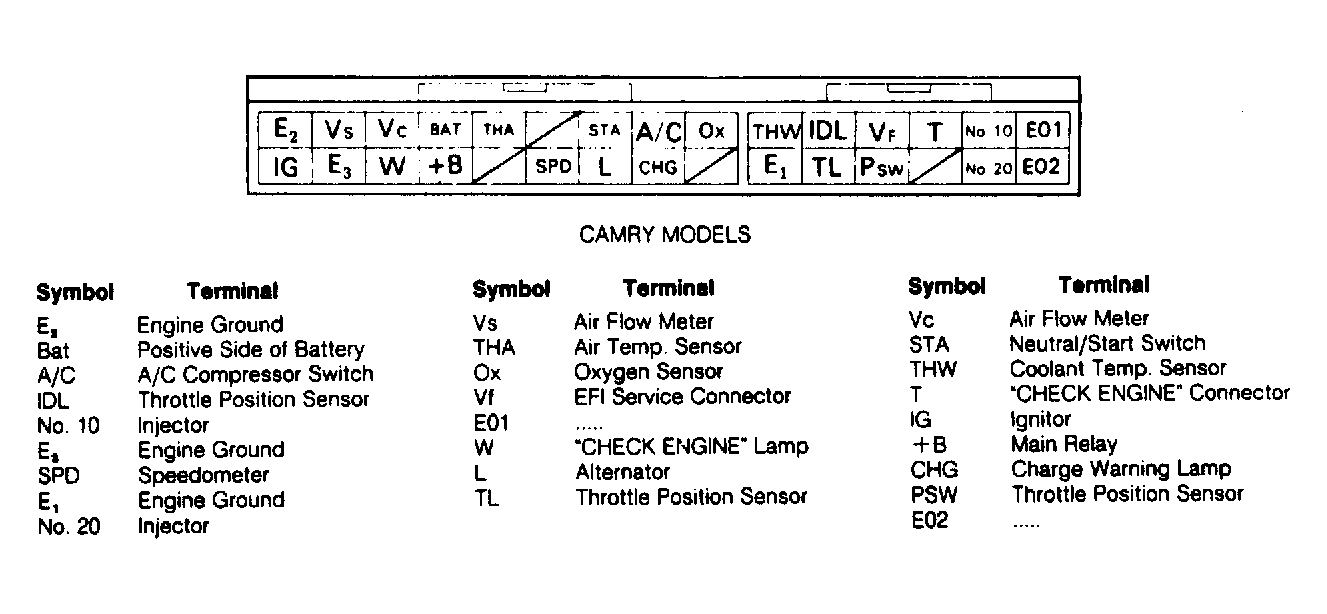

Fig 1: Electronic Control Unit Connector Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
