Sub-System Wiring Diagrams - Electro Sensor Computer System: Wiring Diagram

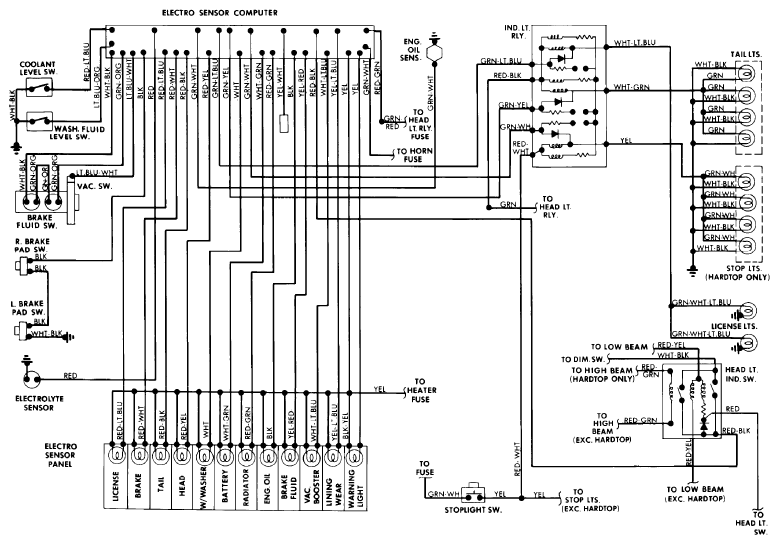

Fig 1: Electro Sensor Computer System Wiring Diagram (Toyota, All Models So Equipped)
G09303380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
