Wheel Sensor - TPMS - Remove And Replace: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect the wheel and valve hole. Remove any dirt, burrs, or swarf.

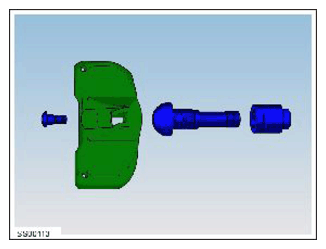

- Install the valve retaining screw to the wheel sensor.NOTE: Ensure that the square faces are parallel with the slot in the sensor.
- Screw the valve onto the sensor screw. Ensure that the valve screw is free to move in the slot.
- Position the sensor and valve to wheel and loosely secure it with the retaining nut.

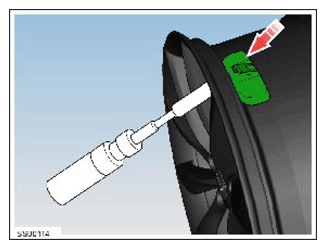

- Holding the sensor firmly against the inside of the wheel, tighten the valve retaining nut.
- Baolong TPMS: Torque 5 N.m.
- Continental TPMS: Torque 8 N.m.
NOTE: Before the full torque is reached, an internal break off ring will "give". Continue to tighten the nut until the full torque is achieved. - Inspect the sensor location; both feet should be in contact with the wheel. If the sensor is not firmly located it should be reinstalled using a new valve and screw.
- Apply a suitable lubricant to the tire bead.
- Ensure that the tire bead is correctly located between the sensor and the wheel.
- Inflate the tire until both the tire beads are seated on the wheel. Adjust the tire pressure to the recommended pressure and install the valve cap.
- Check the tire for air leaks.
- Balance the wheel.
- Install the wheel.
- Lower the vehicle.
- Perform the wheel sensor TPMS ID learn procedure.
- Baolong TPMS: , refer to TPMS Sensor - ID Learn Procedure - Baolong .
- Continental TPMS: , refer to TPMS Sensor - ID Learn Procedure - Continental .
- Drive the vehicle for approximately one minute at a speed exceeding 20 mph (32 km/h) until the ID learn process is completed.NOTE: Make sure that the vehicle has no TPMS alerts before you return the vehicle to the customer.
