Center Console - Wireless Charger Module, Gen 4 - Remove And Replace: Notes

Last modified: 07/08/2024 18:29:33

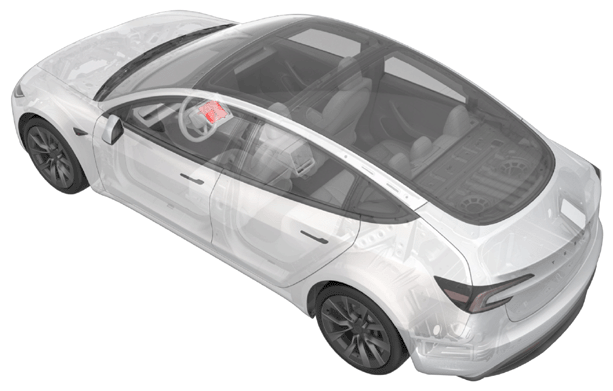

Fig 1: Center Console Wireless Charger Module Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.

Revision History:

2024-08-08: Added correction code and reference for the wireless charger which is fastened on a screw-secured phone dock.

NOTE:

For wireless charger module fastened on a screw-secured phone dock, use correction code 1519010232.
For wireless charger module fastened on a clip-secured phone dock, use correction code 1519010272.
