Center Console - Console CloseOut, Assembly - Remove And Replace: Remove
- Open all the doors and lower all the windows.
- Remove the phone dock assembly. See INTERIOR TRIM - CENTER CONSOLE - CENTER CONSOLE - PHONE DOCK - CLIP - REMOVE AND REPLACE
- Remove the center console rear end panel. See CENTER CONSOLE - CONSOLE REAR END PANEL, ASSEMBLY - REMOVE AND REPLACE .
- Remove the LH center console rear side panel. See CENTER CONSOLE - REAR SIDE PANEL, LH, ASSEMBLY - REMOVE AND REPLACE .
- Remove the LH center console front side panel. See CENTER CONSOLE - CONSOLE SIDE PANEL, CARPET, LH, LHD - REMOVE AND REPLACE .
- Remove LH center console decor trim. See CENTER CONSOLE - HOCKET STICK, LH, ASSEMBLY - REMOVE AND REPLACE .
- Remove the RH center console rear side panel. See CENTER CONSOLE - REAR SIDE PANEL, LH, ASSEMBLY - REMOVE AND REPLACE .
- Remove the RH center console front side panel. See CENTER CONSOLE - CONSOLE SIDE PANEL, CARPET, RH, LHD - REMOVE AND REPLACE .
- Remove the RH center console decor trim. See CENTER CONSOLE - HOCKET STICK, LH, ASSEMBLY - REMOVE AND REPLACE .
- Remove the center console top face panel. See CENTER CONSOLE - TOP FACE PANEL ASSEMBLY - REMOVE AND REPLACE .
- Remove the center console sliding bin lid assembly. See INTERIOR TRIM - CENTER CONSOLE - CENTER CONSOLE - CONSOLE SLIDING DOOR ASSEMBLY - REMOVE AND REPLACE .

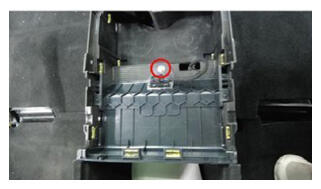

- Remove the screw that secures the console closeout assembly to the center console.
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Torque Wrench 1/4 in Dr Hexagon - 1060071-00-A (for installation only)

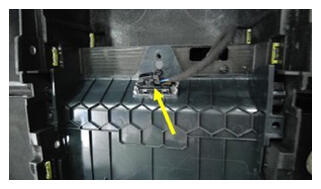

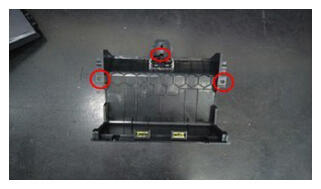

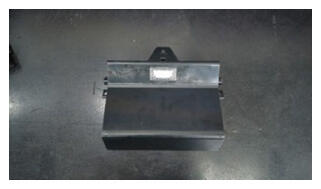

- Disconnect the center console puddle lamp electrical harness from the console closeout connector, and then remove the console closeout from the center console.NOTE: Pull the console closeout straight up to remove it from the datums (x3).
