Center Console - Console CloseOut, Assembly - Remove And Replace: Install

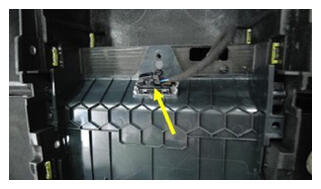

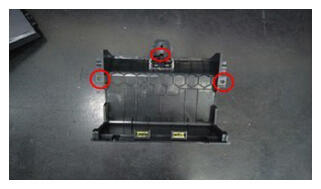

- Install the console closeout to the center console, and then connect the center console puddle lamp electrical harness to the console closeout connector.NOTE: Align the datum holes (x3) when installing the console closeout.CAUTION: Ensure the connector is properly installed. Perform a push-pull test before continuing this procedure.

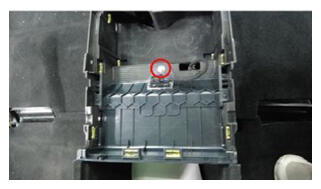

- Install the screw that secures the console closeout assembly to the center console.
1 N.m (.7 lbs-ft)
Tip: Use of the following tool(s) is recommended:
- Torx T20 socket
- 2 in extension
- Cordless Ratchet/Impact Driver
- Torque Wrench 1/4 in Dr Hexagon - 1060071-00-A (for installation only)
- Install the center console sliding bin lid assembly. See INTERIOR TRIM - CENTER CONSOLE - CENTER CONSOLE - CONSOLE SLIDING DOOR ASSEMBLY - REMOVE AND REPLACE .
- Install the center console top face panel. See CENTER CONSOLE - TOP FACE PANEL ASSEMBLY - REMOVE AND REPLACE .
- Install the RH center console decor trim. See CENTER CONSOLE - HOCKET STICK, LH, ASSEMBLY - REMOVE AND REPLACE .
- Install the RH center console front side panel. See CENTER CONSOLE - CONSOLE SIDE PANEL, CARPET, RH, LHD - REMOVE AND REPLACE .
- Install the RH center console rear side panel. See CENTER CONSOLE - REAR SIDE PANEL, LH, ASSEMBLY - REMOVE AND REPLACE .
- Install LH center console decor trim. See CENTER CONSOLE - HOCKET STICK, LH, ASSEMBLY - REMOVE AND REPLACE .
- Install the LH center console front side panel. See CENTER CONSOLE - CONSOLE SIDE PANEL, CARPET, LH, LHD - REMOVE AND REPLACE .
- Install the LH center console rear side panel. See CENTER CONSOLE - REAR SIDE PANEL, LH, ASSEMBLY - REMOVE AND REPLACE .
- Install the center console rear end panel. See CENTER CONSOLE - CONSOLE REAR END PANEL, ASSEMBLY - REMOVE AND REPLACE .
- Install the phone dock assembly. See INTERIOR TRIM - CENTER CONSOLE - CENTER CONSOLE - PHONE DOCK - CLIP - REMOVE AND REPLACE
- Raise all the windows and close all the doors.
