Puddle Light - Rear Trunk - Remove And Replace: Install

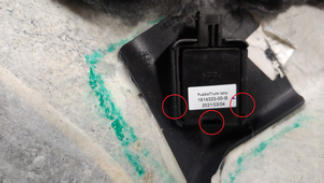

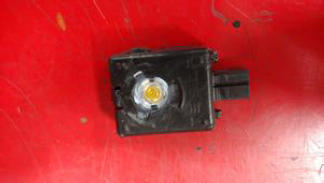

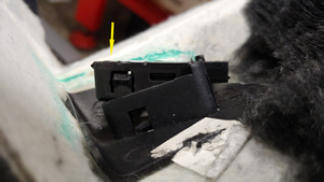

  1. Position the rear trunk puddle light on the vehicle, and then install the clips (x3) that attach the light to the LH side carpet.
    G15437982Courtesy of TESLA, INC.
    G15437983Courtesy of TESLA, INC.
    G15437984Courtesy of TESLA, INC.

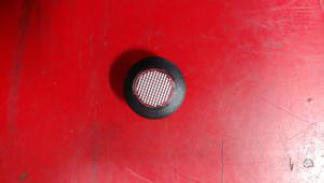

  2. Install the rear trunk puddle light lens on the LH side carpet.
    NOTE: Line up the lens tabs with the puddle lamp.

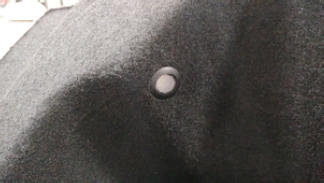

    G15437985Courtesy of TESLA, INC.
    G15437986Courtesy of TESLA, INC.
  3. Install the LH trunk side trim. See Trim - Side - Trunk - LH (6/7 Seat) (Remove and Replace) .
  4. Install the LH mid C-pillar zone bracket. See Bracket - Zone - C-Pillar - Mid - LH (6/7 Seat) (Remove and Replace) .
  5. Install the LH upper C-pillar trim. See Trim - C-Pillar - Upper - LH (Remove and Replace) .

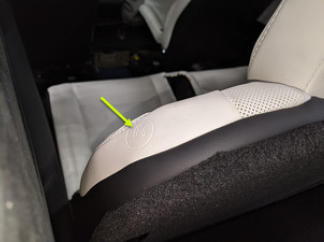

  6. Unfold the LH 3rd row seat back into original position.
    G15437987Courtesy of TESLA, INC.
  7. Install the LH lower C-pillar trim. See Trim - C-Pillar - Lower - LH (Remove and Replace) .
  8. Install the LH mid C-pillar trim. See Trim - C-Pillar - Mid - LH (Remove and Replace) .

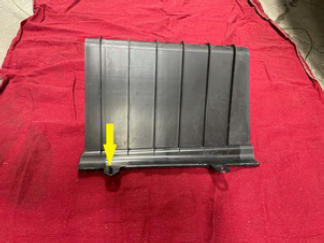

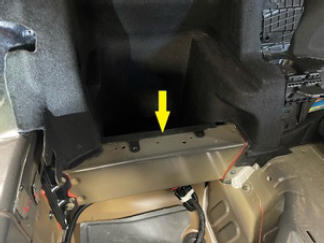

  9. Position the LH soft trim pocket bracket on the vehicle, and then install the push clip that attaches the bracket to the body.
    G15437988Courtesy of TESLA, INC.
    G15437989Courtesy of TESLA, INC.

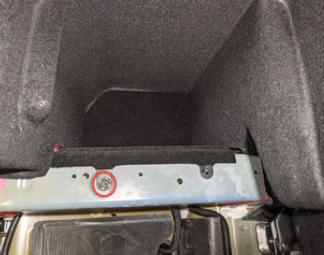

    G15437990Courtesy of TESLA, INC.
  10. Install the LH rear trunk crush can trim. See Trim - Crush Can - Rear Trunk - LH (Remove and Replace) .
  11. Install the rear wall rear trunk trim.
  12. Install the trunk sill trim. See Trim - Sill - Trunk (Remove and Replace) .
  13. Install the LH and RH side rear trunk garnish. See Garnish - Rear Trunk - Side - LH (Remove and Replace) .
  14. Install the rear trunk carpet. See Carpet - Rear Trunk (7 Seat) (Remove and Replace) .
  15. Install the rear trunk floor NVH insulator. See NVH Insulator - Floor - Rear Trunk (Remove and Replace) .
  16. Install the rear trunk load floor. See Trunk Load Floor - Rear (Remove and Replace) .
  17. Install the side trunk load floor. See Trunk Load Floor - Side (Remove and Replace) .
  18. Close the liftgate.
  19. Move the LH monopost seat into original position.
  20. Close the LH falcon wing door.
