Harness - Adaptive Air Spring Module - Front - LH - Remove And Replace: Remove

  1. Raise and support the vehicle.
  2. Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  3. Remove the LH and RH underhood aprons. See Underhood Apron - LH (Remove and Replace) .
  4. Remove the front underhood apron. See Underhood Apron - Front (Remove and Replace) .
  5. Remove the underhood storage unit access panel. See Underhood Storage Unit Access Panel (Remove and Replace) .
  6. Remove the underhood storage unit. See Underhood Storage Unit (Remove And Install)
  7. Disconnect the LH front damper harness connector.

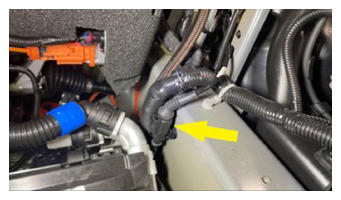

    G15103685Courtesy of TESLA, INC.
  8. Release the clip that attaches the LH front damper harness to the vehicle, and then route the harness towards the LH wheel liner.

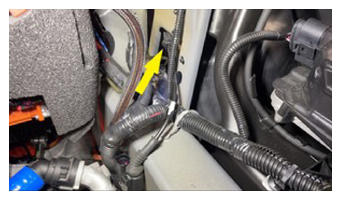

    G15103686Courtesy of TESLA, INC.

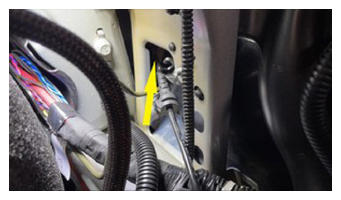

    G15103687Courtesy of TESLA, INC.
  9. Remove the LH front wheel. See Wheel (Remove and Install) .
  10. Disconnect the LH damper harness connectors from the LH front air spring module.

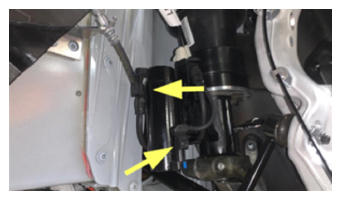

    G15103688Courtesy of TESLA, INC.
  11. Release the clips that attach the LH front damper harness to the solenoid bracket, and then remove the harness from the vehicle.

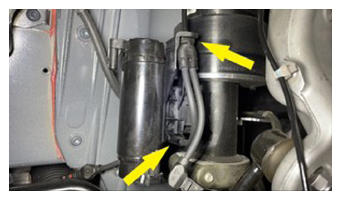

    G15103689Courtesy of TESLA, INC.
