Sensor - Pressure - Door - Front - LH - Remove And Replace: Remove

  1. Remove the LH front door trim decor. See Decor - Trim - Front Door - LH (Remove and Replace) .
  2. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace)
  3. Release the connector lock, and then disconnect the LH front door pressure sensor electrical connector.
    CAUTION: Do not push down on red tab. Pull the red tab to disengage lock, and then pull the connector to release it.

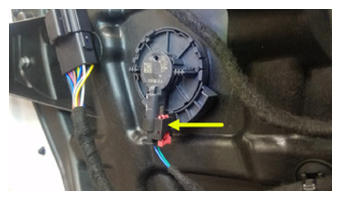

    G15100005Courtesy of TESLA, INC.
  4. Rotate the LH front door pressure sensor counterclockwise to remove it from the closeout panel.

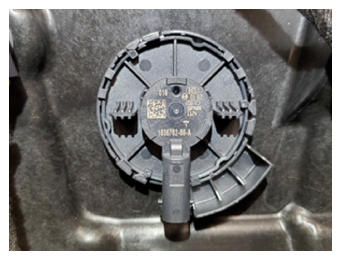

    G15100006Courtesy of TESLA, INC.

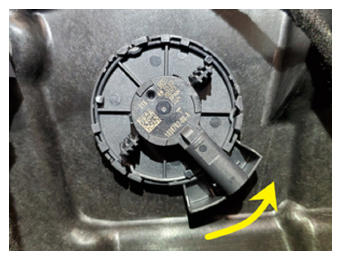

    G15100007Courtesy of TESLA, INC.

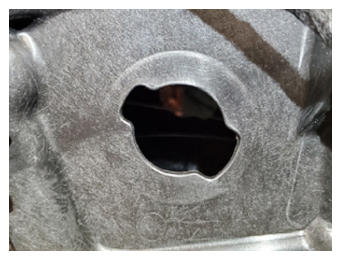

    G15100008Courtesy of TESLA, INC.
