Buckle - 1st Row - LH - Remove And Replace: Remove
- Remove the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Move the driver seat to the most rearward and lowest position.
- Open the LH rear door.
- Disconnect LV power. See LV Power (Disconnect and Connect) .
- Remove the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace) .

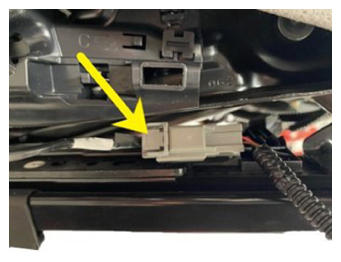

- Disconnect the driver seat buckle electrical connector.

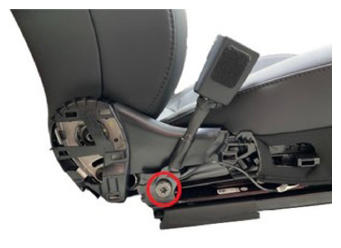

- Remove and discard the bolt that attaches LH 1st row buckle from the seat track.
40 N.m (29.5 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- T45P socket
