Buckle - 1st Row - LH - Remove And Replace: Install

  1. Position the driver seat buckle into the vehicle, and then install a new bolt that attaches the buckle to the seat track.

    40 N.m (29.5 ft-lbs)

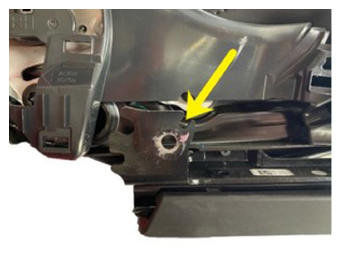

    NOTE: Align the guide pin onto the seat track.

    Tip: Use of the following tool(s) is recommended:

    • T45P socket
    G15099815Courtesy of TESLA, INC.
    G15099816Courtesy of TESLA, INC.

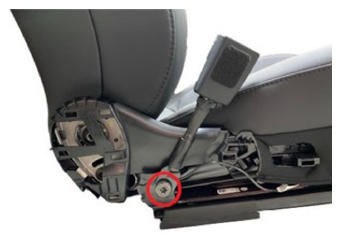

    G15099817Courtesy of TESLA, INC.

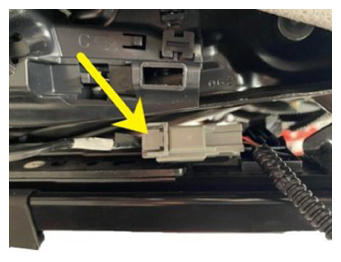

  2. Connect the driver seat buckle electrical connector.
    G15099818Courtesy of TESLA, INC.
  3. Install the driver seat inboard side shield. See Side Shield - Inboard - Driver Seat (Remove and Replace) .
  4. Connect LV power. See LV Power (Disconnect and Connect) .
  5. Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
  6. Move the driver seat to the original position.
