Knee Airbag - Driver - Remove And Replace: Install

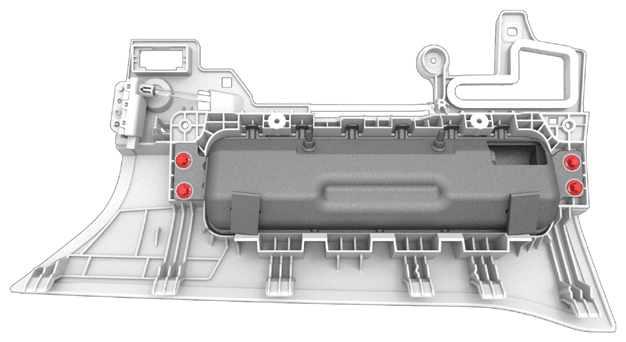

- Attach the driver knee airbag to the knee airbag cover, and then secure them with new patch bolts (x4).
8 N.m (5.9 ft-lbs)
Tip: Use of the following tool(s) is recommended:
- 2 in extension
- Ratchet/torque wrench
- External Torx E10
- 1/4 in to 3/8 in adapter

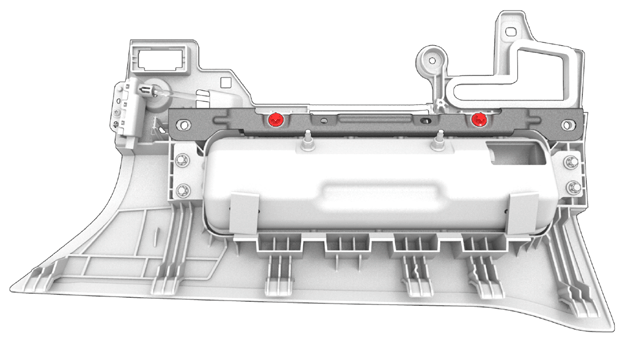

- Install new patch bolts (x2) that attach the brace to the driver knee airbag cover.
Tip: Use of the following tool(s) is recommended:
- 2 in extension
- Ratchet/torque wrench
- External Torx E10
- 1/4 in to 3/8 in adapter

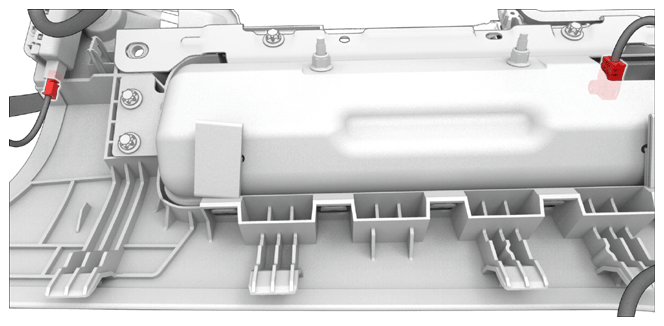

- While supporting the driver knee airbag assembly, connect the electrical connectors (x3).CAUTION: Carefully connect the airbag electrical connector to prevent damage to the electrical connectors.
- Hook the tabs (x6) before putting the driver knee airbag onto the instrument panel, and then seat the airbag to the instrument panel.

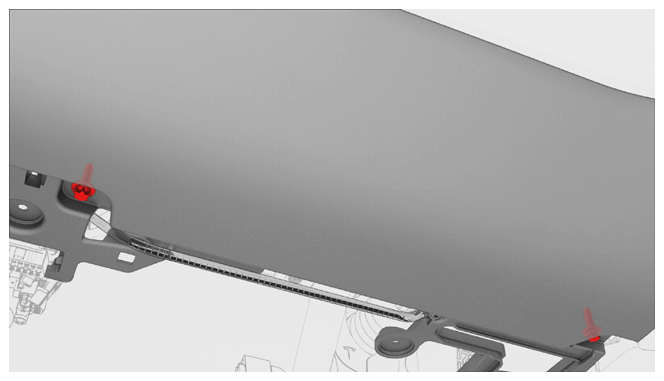

- Install the new patch bolts (x2) that attach the driver knee airbag to the instrument panel.
Tip: Use of the following tool(s) is recommended:
- 2 in extension
- Ratchet/torque wrench
- External Torx E10
- 1/4 in to 3/8 in adapter
- Install the driver footwell cover. See Cover - Footwell - Driver (Remove and Replace) .
- Connect LV power. See LV Power (Disconnect and Connect) .
- Install the rear underhood apron. See Underhood Apron - Rear (Remove and Replace) .
- Return the driver seat to its original position.
