Airbag - Front Passenger - Remove And Replace: Remove

  1. Remove the RH air wave duct. See Duct - Instrument Panel - Front Passenger (Remove and Replace) .
  2. Disconnect the front passenger airbag connectors (x3).
    NOTE: Simultaneously pull down the spring loaded locks to release the connectors.

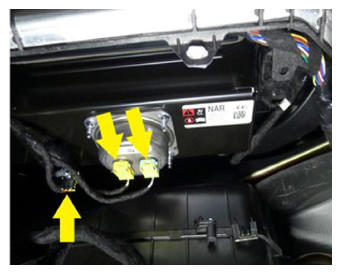

    G15099504Courtesy of TESLA, INC.

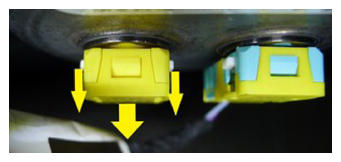

    G15099505Courtesy of TESLA, INC.
  3. Remove and discard the bolts (x6) that attach the front passenger airbag to the vehicle, and then remove the airbag.
    NOTE: 10 mm, 8 N.m

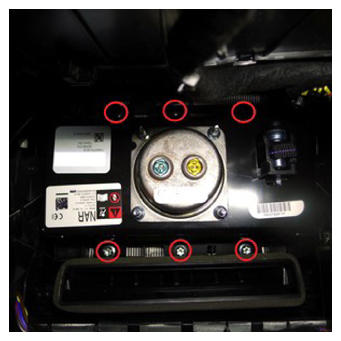

    G15099506Courtesy of TESLA, INC.

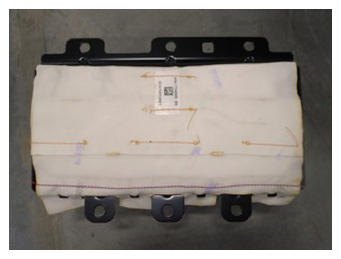

    G15099507Courtesy of TESLA, INC.
