Module - TPMS - Continental - Remove And Replace: Removal

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2020 Tesla Model S, 2019 Tesla Model S, 2018 Tesla Model S, 2017 Tesla Model S, and 2016 Tesla Model S. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH rear seat bolster Bolster - Side - Seat - 2nd Row - LH (Remove And Replace) .
  2. Remove the 2nd row seat cushion Seat Cushion - Lower - 2nd Row (Remove And Install) .
  3. Release the lower section of the RH sill panel to access the TPMS ECU.
    CAUTION: Do not remove the entire trim panel.
    G14981967Courtesy of TESLA, INC.
    1  Location of TPMS ECU.

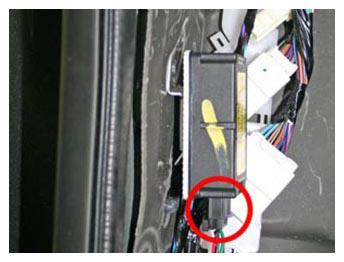

  4. Release the harness from the base of the TPMS ECU.
    G14981968Courtesy of TESLA, INC.
  5. Slide the ECU downwards to remove it from the metal bracket.
